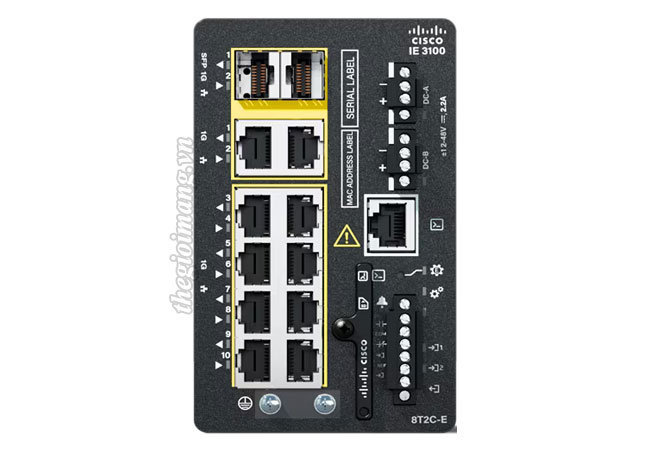

IE-3100-8T2C-E - Cisco Catalyst IE3100 Rugged Switch :
Thiết bị chuyển mạch Switch Industrial Cisco IE-3100-8T2C-E
| Model | IE-3100-8T2C-E |
| Hardware specifications | |
| 10/100/1000 Mbps RJ-45 ports (downlinks) | • 8 |
| 1G combo ports (uplinks) | • 2 |
| Software license | • Network Essentials |
| Removable storage | • SD card |
| Alarms | • 2 dry-contact alarm inputs |
| Console ports | • 1 RS-232 (via RJ-45), 1 Micro USB |
| Power inputs | • DC power inputs |
| Performance and scalability features | |
| Forwarding rate | • Line rate for all ports and all packet sizes |
| Number of queues | • 8 egress |
| Unicast MAC addresses | • 8000 |
| Internet Group Management Protocol (IGMP) multicast groups | • 512 |
| VLANs | • 256 |
| IPv4 indirect routes | • 2000 |
| Spanning Tree Protocol (STP) instances | • 128 |
| DRAM | • 4 GB |
| SD card capacity | • 1 GB, 4 GB |
| Physical configurations | |
| Dimensions (H x W x D) | • 12.70 x 7.62 x 11.00 cm |
| Weight | • 0.86 kg |
| Mounting | • DIN Rail |
| Power specifications | |
| Input Voltage Range | • 12V to 48V nominal • 9.6V to 60V absolute |
| Max Current during normal operation | • 2.0 A with 12V input • 1.0 A with 24V input • 0.5 A with 48V input |
| Inrush Current | • 10 A for 7 ms with 12V input • 6 A for 6 ms with 24V input • 6 A for 6 ms with 48V input |
| Power consumption | • 17.7W |
IE-3100-8T2C-E : Catalyst IE3100 w/8 Ports GE Copper and 2 GE Combo uplinks, NE
