Cisco IE-9310-26S2C-E

IE-9310-26S2C-E - Cisco Catalyst IE9300 Rugged Switch :

  • 22 x 100/1000M SFP ports
  • 2 x 100/1000M DualMedia (SFP or RJ45)
  • 4 x 1000M SFP ports
  • Network Essentials
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Cisco Industrial IE-9310-26S2C-E

Model IE-9310-26S2C-E
Hardware configurations

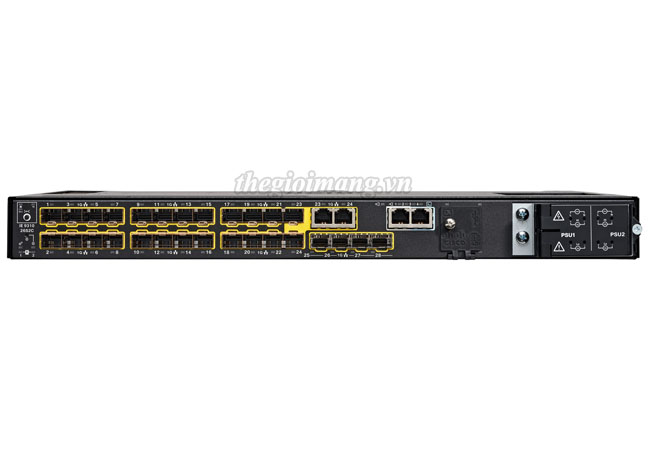

Downlinks • 22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45)
Uplinks (SFP/SFP+) • 4 ports 1000M
Software license (default) • Network Essentials
Hardware • 4-GB DRAM
• 8-GB onboard flash memory
Removable storage • USB, SD card
Alarms • 4 dry-contact alarm inputs
• 1 dry-contact Form-C relay alarm output
Console ports • 1 RS-232 (via RJ-45), 1 Micro USB
Power inputs • Dual AC/DC power inputs
Performance and scalability features
Forwarding rate • 28 Gbps (line rate/nonblocking)
Switching bandwidth • 56 Gbps (switching bandwidth is full-duplex capacity)
Number of queues / port • 8 egress
Unicast MAC addresses • 16000
Internet Group Management Protocol (IGMP) multicast groups • 1000
VLANs • 1024
IPv4 indirect routes • 4000
IPv6 indirect routes • 2000
Spanning Tree Protocol (STP) instances • 128
Access Control List (ACL) entries (port ACL [PACL], VLAN ACL [VACL], router ACL [RACL]) • 1408
DRAM • 4 GB
Flash (user accessible) • 2.5 GB
SD card capacity • 4 GB
SD Access Fabric Edge Support • Yes (32 VNs)
SGT/DGT policies • 2000
IPv4 to SGT binding • 10000
Maximum SVIs • 984
SXP Sessions • 200
Physical configurations
Dimensions (H x W x D) • 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H /PWR-RGD-LOW-DC-H
Weight • 5.53 kg
Mounting • Rack mount
Power consumption • 61W

IE-9310-26S2C-E : Catalyst IE9300 w/ 24 Ports GE SFP Downlinks & 4 Ports GE SFP uplinks, NE.

Data sheet Cisco Catalyst IE9300 Rugged Series
