4x4:4 uplink/downlink MU-MIMO (2.4, 5, 6 GHz)
1 x 100M/1G/2.5G/5G Multigigabit Ethernet (RJ-45)/M12 X-code PoE in (802.3at/bt)
1 x SFP (copper) 100M/1G/10G Multigigabit Ethernet/M12 X-code OR 1xSFP (fiber) 1G/10G
8 x N-type antenna ports
Operating temperature: -40° to +65°C
IP67 rated
ROW Regulatory domains

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

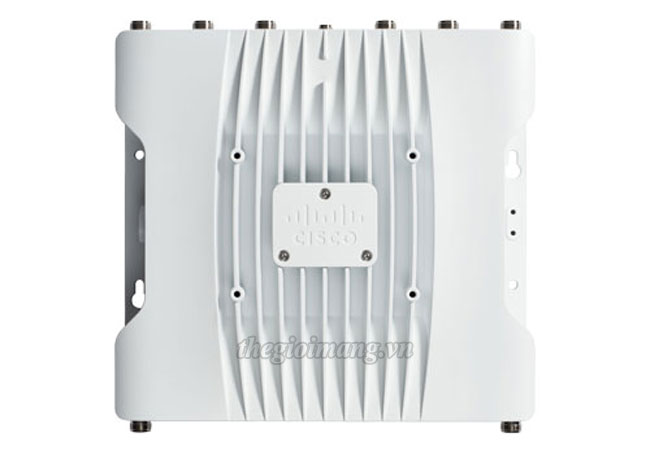

Thiết bị Wi-Fi 6E Cisco Catalyst IW9167E Heavy Duty Access Point with Wi-Fi software

Model

IW9167EH-ROW-AP

Software

● Cisco IOS ® XE Software Release 17.9.3 or later

Supported wireless LAN controllers

● Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual)

802.11n version 2.0 (and related) capabilities

● 4x4 MIMO with four spatial streams in one 2.4 GHz radio and two 5 GHz radios ● Maximal Ratio Combining (MRC)
● 802.11n and 802.11a/g
● 20- and 40-MHz channels
● PHY data rates up to 1.5 Gbps (with 40 MHz on both 5 GHz radios and 20 MHz on the 2.4 GHz radio)
● Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
● 802.11 Dynamic Frequency Selection (DFS)
● Cyclic Shift Diversity (CSD) support

802.11ac

● 4x4 downlink MU-MIMO with four spatial streams on both 5 GHz radios
● Maximal Ratio Combining (MRC)
● 802.11ac beamforming
● 20, 40, 80, and 80+80 MHz contiguous channels
● PHY data rates up to 3.4 Gbps (dual 4x4:4SS 80 MHz or 4x4:2SS 80+80 MHz contiguous on 5 GHz)
● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
● 802.11 DFS
● CSD support
● Wi-Fi Protected Access (WPA) 3 support

802.11ax

● 4x4 uplink/downlink MU-MIMO with four spatial streams in 2.4, 5, and 6 GHz*
● Uplink/downlink OFDMA
● Target Wake Time (TWT)
● BSS coloring
● Maximal Ratio Combining (MRC)
● 802.11ax beamforming
● 20, 40, 80, and 160 MHz channels (5/6 GHz radio)
● 20, 40, 80, 80+80 MHz contiguous (limited to 4x4:2SS) channels (5 GHz radio)
● 20 MHz channels (2.4 GHz radio)
● PHY data rates up to 7.8 Gbps (4x4 160 MHz on 6 GHz, 4x4 80 MHz on 5 GHz, and 4x4 20 MHz on 2.4 GHz)
● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
● 802.11 DFS
● CSD support
● WPA3 support

Antennas

● 8x N-type antenna ports
● 1x TNC GNSS antenna port
● Certified for use with antenna gains up to 13 dBi (2.4 GHz) and 19 dBi (5 GHz).
● Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios.
● Supports Self-Identifiable Antennas (SIA)

Interfaces

● 1x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45)/M12 X-code autosensing PoE+ in (802.3at/bt), UPOE in
● 1x SFP (copper) 100M/1000M/10G Multigigabit Ethernet /M12 X-code
OR 1x SFP (fiber) 1G/10G
● Management console port (RJ-45)
● Multicolor system LED
● DC power input (micro-fit/M12 A-code)
● Reset button
Note: PG 13.5 glands or M12 adapters shall be used with Ethernet and power interfaces to maintain IP67 rating.

Dimensions (W x L x H)

● 29.2 x 26.7 x 7.1 cm

Weight

● 4.2 kg

Input power requirements

● 802.3at (PoE+), 802.3bt (PoE++), Cisco Universal PoE (Cisco UPOE ®)
● DC power source: 24 to 48 VDC (maximum voltage range: 18 to 60 VDC)
● Cisco power AC-DC power adapter, IW-PWRADPT-MFIT4PN=
● Cisco power injector, IW-PWRINJ-60RGD5GE=

Power draw

Power Input Type	2.4 GHz radio	5 GHz radio	5/6 GHz radio	RJ45	SFP/SFP+	Power Budget
24-48 VDC	4x4	4x4	4x4	5Gbps	Yes	48W
802.3bt (UPOE)	4x4	4x4	4x4	5Gbps	Yes	48W
802.3at (PoE+)	2x2	2x2	2x2	1Gbps	Yes/1G	25W

Note: Power required at the power source equipment (PSE) will depend on the cable length and other environmental issues.

Surge

● DC power input
◦ EN50121-4, ± 2 kV (line-earth) and ± 1 kV (line-line)
◦ AREMA, ± 1 kV (line-earth) and ± 1 kV (line-line)
◦ CISPR35, ± 0.5 kV (line-earth)
● Surge protection to ± 2 kV on Ethernet ports
● Surge protection to ± 1 kV on SFP copper port with shielded cable

Environmental

● Nonoperating (storage) temperature: -40° to +85°C
● Nonoperating (storage) altitude test: +25˚C (77˚F), 17,000 ft.
● Operating temperature: -40° to +65°C with solar load and still air
● Extended operating temperature (DC powered): -58° to +158°F (-50° to +70°C) without solar loading, still air, and cold start limited to -40°C
● Operating type test: +85°C for 16 hours
● Operating humidity: 0% to 100% (condensing)
● Operating altitude: 15,000 ft. (4,500 m)
● Wind resistance: Up to 160 mph (257 km/h) sustained winds

Environmental ratings

● EN/IEC 60529 (IP66 and IP67)

System memory

● 2048 MB DRAM
● 1024 MB flash

IW9167EH-ROW-AP : Industrial Wireless 9167E, 11ax 6E AP, 8 RF ports, ROW domain, Wi-Fi software

Data sheet Cisco Catalyst IW9167 Heavy Duty Series
