Mô tả sản phẩm

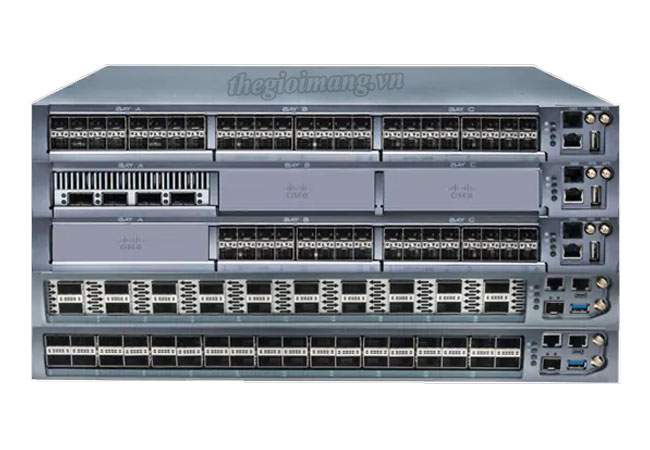

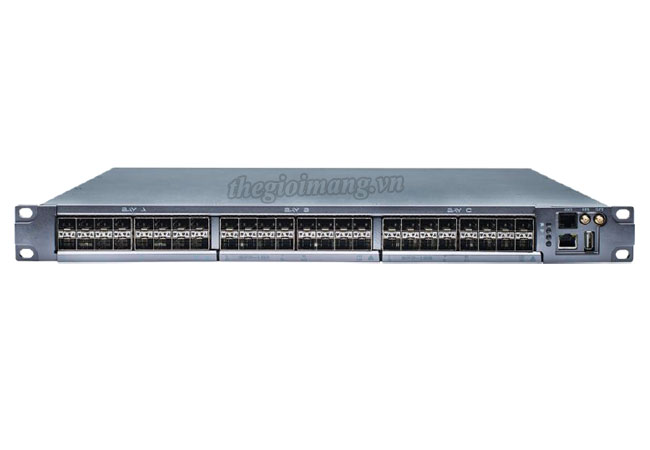

Thiết bị mạng Switch Cisco Nexus 3550-F Fusion Mux

Model	Nexus 3550-F Fusion Mux
Switch Type
Layer 1 switching:	Yes
	Min latency 3ns
	48x channels
	full signal regeneration
Layer 2 multiplexing:	Yes
	Min latency 39ns
	Max fan-in 48:1
	VLAN tag/trunking
	IGMP snooping
	MAC learning
	Layer 2 demultiplexing
Layer 2 switching:	None
Layer 2 timestamping:	Yes
	2.8ns precision
	Max fan-in 48:1
	Max instances 4
	Max outputs per instance 1
Features
Buffer depth:	Up to 1.5MB shared
Ports:	3 modular line card bays, accepting
	16x SFP+ ports line card option
	4x QSFP+ ports line card option
	Max 48x SFP+ or 12 QSFP+ ports
Speeds:	100MbE, 1GbE, 10GbE, 40GbE
Statistics:	Per-port statistics and signal monitoring
	RX and TX packet and error counters (1/10GbE only)
	Signal quality, temperature and power monitoring
Management CPU:	ARM Cortex A8
Management Interfaces:	RJ45 10/100M Ethernet Management Port
	RJ45 Industry Standard Serial Port
	SMA - PPS in/out
	SMA - GPS in
	USB-A (firmware update)
Management:	CLI via serial, SSH and telnet
	SNMP V2 & V3
	Remote logging to Syslog
	Timeseries logging to Influx DB
	Automatic configuration via DHCP
	TACACS+ and multi user support
	FW updates via SFTP, TFTP, HTTP and USB
Automation :	JSON RPC API
	Onboard BASH and Python scripts
	Onboard Cron jobs
Time Synchonization:	NTP
	PTP
	PPS
	GPS
General	Weight 11kg (24lbs)
	Dual, hot-swappable supplies
	Standard: AC 90-264V, 47-64 Hz,
	Optional: DC 40-72V
	Maximum consumption: 150W
	Dual fan modules
	Optional airflow direction (FTB, BTF)
	100MbE only supported at layer 1. SFP module and functionality limitiations apply.
	40GbE only supported at layer 1, interoperability limitations apply.
	Minimum latency not available at maximum fan-in or with layer 2 features
	Requires module support

Cisco Nexus 3550-F Fusion feature comparison

Device	Layer 1 Switching	Layer 2 Muxing	Layer 2 Switching	Ordering ID
Cisco Nexus 3550-F Fusion L1	Yes			N35-F-48X
Cisco Nexus 3550-F Fusion Mux	Yes	Yes		N35-FM-48X
Cisco Nexus 3550-F Fusion Switch	Yes	Yes	Yes	N35-FS-48X

Cisco Nexus 3550-F Fusion multiplexing mode

Mode	Latency (min)	Link Rate(s)	Total Muxes	Max ports	Buffer per port	Demuxing
FastMux	39ns	10GbE	4	15,11,11,1	4kB	L1 only
Mux	92ns	1/10GbE	4	48	20kB	L1/L2/VLAN
Switch	86ns	10GbE	48	48	32kB	L1/L2/VLAN
