Thiết bị chuyển mạch Switch Cisco Nexus N3K-C3132C-Z
Model | N3K-C3132C-Z |

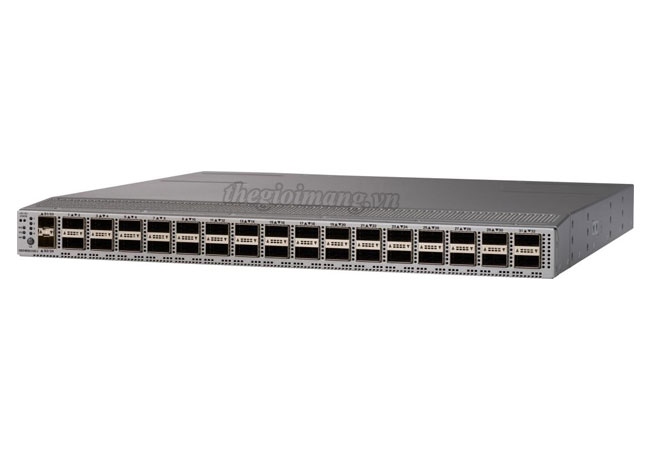

Physical | ● 32 fixed 100 Gigabit Ethernet QSFP28 ports ● Beacon LED ● Environment LED ● Status LED ● Lane-selected LED ● Dual redundant power supplies ● Redundant (3+1) fans ● Two 1/10-Gbps SFP ports (port 33 and port 34 in front ● One RJ-45 console port ● One RJ45 and one SFP management port ● One USB port |
Performance | 6.4Tbps switching capacity |
Typical operating power | 200W |
Maximum power | 493W |
Typical heat dissipation | 1064 BTUs/hr |
Maximum heat dissipation | 1682 BTUs/hr |
Hardware tables and scalability | |
Number of MAC addresses | 32,000 min 288,000 max |
Number of IPv4 unicast routes | 24,000 |
Number of IPv4 hosts | 16K min/168K max |
Number of IPv4 multicast routes | 8000 |
Number of VLANs | 4096 |
Number of ACL entries | 4096 |
Number of spanning-tree instances | RSTP: 512 MSTP: 64 |
Number of EtherChannels | 24 |
Number of ports per EtherChannel | 24 |
Buffer size | 32 MB |
Boot flash memory | 128 GB |
Power | |
Number of power supplies | 2 (redundant) |
Power supply types | AC (forward and reversed airflow) |
Input voltage | 100 to 240 VAC |
Frequency | 50 to 60Hz |
Power supply efficiency | 89 to 91% at 220V |

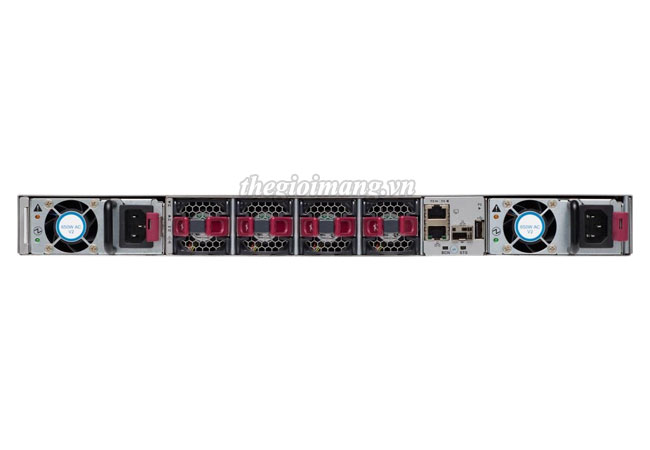

Cooling | Forward and reversed airflow schemes ● Forward airflow: port-side exhaust (air enters through fan tray and power supplies and exits through ports) ● Reversed airflow: port-side intake (air enters through ports and exits through fan tray and power supplies) Four individual, hot-swappable fans (3+1 redundant) |
Environment | |
Dimensions (height x width x depth) | 17.3W x 1.72H x 18.5D” (43.9 x 4.36 x 46.99cm) |
Weight | 19.2 lb. with PSU and fan 13.8 lb. without PSU and fan |
Operating temperature | 32 to 104°F (0 to 40°C) |
Storage temperature | –40 to 158°F (–40 to 70°C) |
Relative humidity: storage | 5 to 95% noncondensing |
Relative humidity: operating | ● 10 to 85% noncondensing ● Up to 5 days at maximum (85%) humidity ● Recommend ASHRAE data center environment |
Altitude (operating and nonoperating) | 0 ft. to 10,000 ft. |
N3K-C3132C-Z : Cisco Nexus 3132C-Z switch with 32 QSFP28
