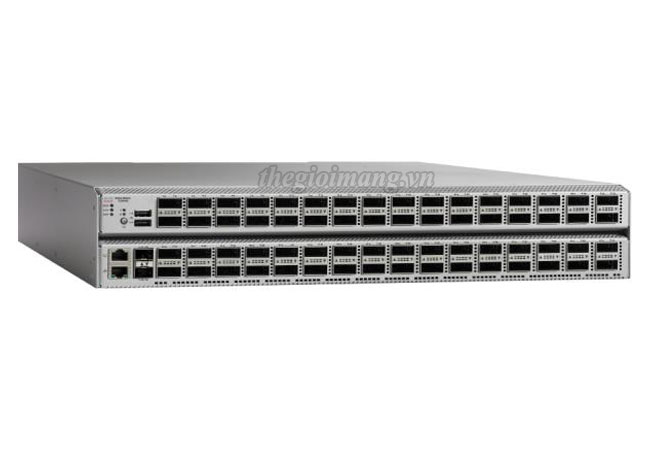

Cisco Nexus N3K-C3264Q

Switch Cisco Nexus N3K-C3264Q - Nexus 3264Q, 64 QSFP+ ports, 2RU switch
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Cisco Nexus N3K-C3264Q

Model N3K-C3264Q
Physical  ● 2RU fixed form-factor switch
● 64 QSFP+ ports; each supports native 40 Gigabit Ethernet.
● 2 redundant power supplies
● 3+1 redundant fans
● Management, console, and USB flash-memory ports
Performance  ● 5.12 Tbps switching capacity
● Forwarding rate up to 3.8 bpps
● Line-rate traffic throughput (both Layer 2 and 3) on all ports
● Configurable Maximum Transmission Unit (MTU) of up to 9216 bytes (jumbo frames)
Hardware tables and scalability
Number of VLANS  MSTP: 4096
Number of spanning-tree instances  ● MSTP: 64
● RPVST+: 512
Number of Access Control List (ACL) entries  ● 7000 ingress
● 1000 egress
Routing table*  ● Maximum number of Longest Prefix Match (LPM) routes: 128K
● Maximum number of IP host entries:72K
● Maximum number of MAC address entries: 136K
● Maximum Number of L3 Multicast: 64K
Number of EtherChannels  256 (With VPC)
Number of ports per EtherChannel  32
Switch ASIC Buffer size  16 MB shared
System memory  8 GB
Log Flash  64 GB
Power
Frequency  50 to 60 Hz
Power supply types  AC
Typical operating power  285 watts (W)
Maximum power  715W
AC PSUs ● Input voltage : 200 to 240 VAC
● Frequency : 50 to 60 Hz
● Efficiency : 93% at 220V
Typical heat dissipation  2739 BTU/hr (with SR4 optics at 100% load)
Maximum heat dissipation  1160 BTU/hr
Cooling  Port-side intake and port-side exhaust options
Port-side intake: Yes
Port-side exhaust: Post FCS
Dimensions
Dimensions (height x width x depth)  3.39 x 17.41 x 22.32 in. (88.4 x 442 x 566 mm)
Environment
Weight  32.8 lb (14.9 kg)
Operating temperature  32 to 104°F (0 to 40°C)
Storage temperature  -40 to 158°F (-40 to 70°C)
Operating relative humidity  ● 10 to 85% noncondensing
● Up to 5 days at maximum (85%) humidity
Recommend ASHRAE data center environment
Storage relative humidity  5 to 95% noncondensing
Altitude (Operating)  Up to 13,123 ft.
Altitude (Non-Operating)  Up to 16,000 ft.

N3K-C3264Q : Nexus 3264Q, 64 QSFP+ ports, 2RU switch

Data sheet Cisco Nexus 3264Q Switch
