Thiết bị mạng Cisco Nexus Module N7K-SUP1
| Mã sản phẩm | N7K-SUP1 |
| Product compatibility | Cisco Nexus 7009, 7010, 7018 Switches |
| Software compatibility | Cisco NX-OS Software Release 4.0 or later (minimum) |
| Cards, ports and slots | Two supervisor modules required per system for high availability |
| Interfaces | ● Supervisor management port: 10/100/1000-Mbps Ethernet port, support for inline encryption through MAC security (IEEE 802.1AE) ● CMP management port: 10/100/1000-Mbps Ethernet port ● Console serial port: RJ45 connector ● Auxiliary serial port: RJ45 connector ● 3 USB ports: 2 host and 1 device port for peripheral devices |
| Memory | ● DRAM: 4 GB ● Flash memory: 2 GB ● NVRAM: 2 Mb battery backup |
| Options | ● Removable storage; 2 external type II compact flash memory slots: ◦ Log (8 GB) ◦ Expansion (2 GB) |
| Reliability and availability | ● Online insertion and removal (OIR) |
| MIBs | Simple Network Management Protocol (SNMP) Versions 3, 2c and 1 supported; see Cisco NX-OS Software release notes for details of specific MIB support |
| Network management | ● Cisco Data Center Network Manager (DCNM) 4.0 ● Cisco VFrame Data Center 1.2 |
| Programming interfaces | ● Extensible Markup Language (XML) ● Scriptable command-line interface (CLI) ● Cisco DCNM 4.0 Web Services |
| Physical specifications | ● Occupies one supervisor slot in a Cisco Nexus 7000 Series chassis ● Dimensions (H x W x D): 1.2 x 15.3 x 21.9 in. (3.0 x 38.9 x 55.6 cm) ● Weight: 10 lb (4.5 kg) |
| Environmental conditions | ● Operating temperature: 32 to 104°F (0 to 40°C) ● Operational relative humidity: 5 to 90%, noncondensing ● Storage temperature: -40 to 158°F (-40 to 70°C) ● Storage relative humidity: 5 to 95%, noncondensing |
| Regulatory compliance | ● EMC compliance ● FCC Part 15 (CFR 47) (USA) Class A |
| Environmental standards | |
| Safety | ● UL/CSA/IEC/EN 60950-1 ● AS/NZS 60950 |
| Warranty | ● Cisco Nexus 7000 Series Switches come with the standard Cisco 1-Year Limited Hardware Warranty |

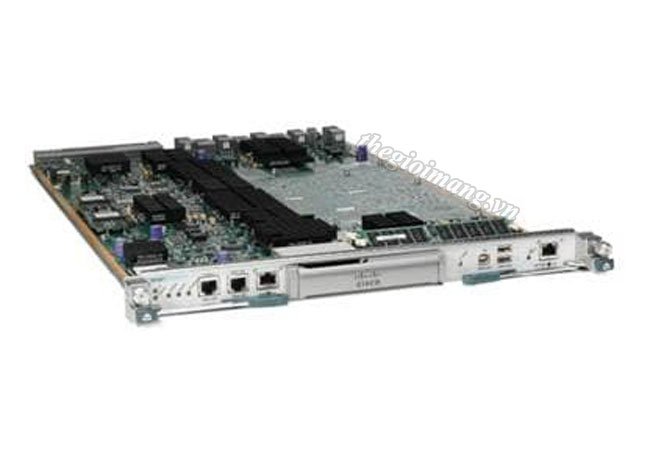

N7K-SUP1 - Cisco Nexus 7000 Supervisor Module, Includes External 8Gb flash
