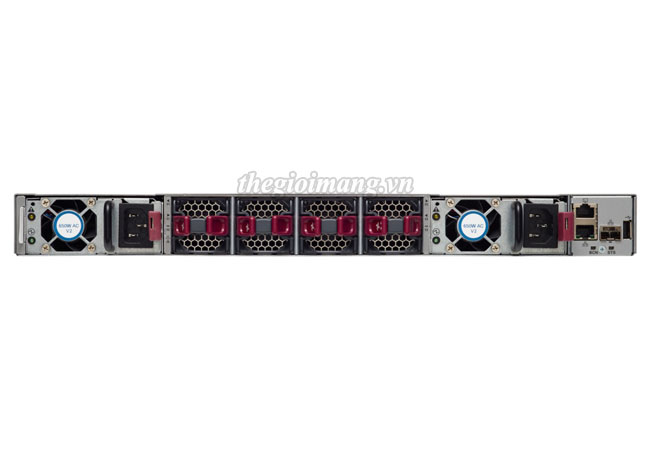

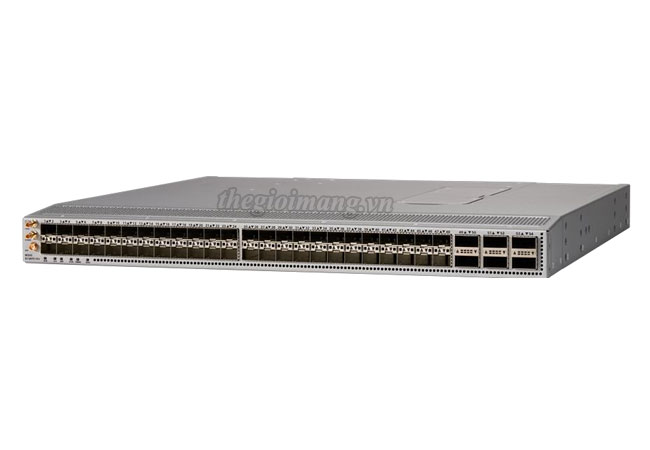

Thiết bị chuyển mạch Switch Cisco Nexus N9K-C93180YC-FX3
Model | N9K-C93180YC-FX3 |
Switch specifications | |
Ports | 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
Downlink supported speeds | 1/10/25-Gbps Ethernet |
CPU | 6 cores |
System memory | Upto 32 GB |
SSD drive | 128 GB |
System buffer | 40 MB |
Management ports | 1 RJ-45 port |
USB ports | 1 |
1PPS | GPS 1PPS input or output |
10MhZ | GPS 10Mhz input or output. |
Time of Date (TOD) | 1 RJ-45 |
ANT | Antenna for GNSS |
RS-232 serial ports | 1 |
Power supplies (up to 2) | 650W AC, 930W DC, or 1200W HVAC/HVDC |
Typical power (AC/DC) | 375W |
Maximum power (AC/DC) | 600W |
Input voltage (AC) | 100 to 240V |
Input voltage (High-Voltage AC [HVAC]) | 200 to 277V |
Input voltage (DC) | –48 to –60V |
Input voltage (High-Voltage DC [HVDC]) | –240 to –380V |
Frequency (AC) | 50 to 60 Hz |
Fans | 4 |
Airflow | Port-side intake and exhaust |
Physical dimensions (H x W x D) | 1.72 x 17.3 x 19.6 in.(4.4 x 43.9 x 49.6 cm) |
Acoustics | Port Side Exhaust: Fan speed at 50%:63.4 dBA Fan speed at 70%:74.3 dBA Fan speed at 100%: 83.4 dBA Port Side Intake: Fan speed at 50%:64.6 dBA Fan speed at 70%:76.1 dBA Fan speed at 100%: 85.4 dBA |
RoHS compliance | Yes |
MTBF | 288,760 Hours |
Minimum ACI image | ACI-N9KDK9-15.1.3 |
Minimum NX-OS image | NXOS-10.1.1/NXOS-9.3.7 |
Performance and scalability specifications | |
Maximum number of Longest Prefix Match (LPM) routes | 1,792,000 |
Maximum number of IP host entries | 1,792,000 |
Maximum number of MAC address entries | 512,000 |
Maximum number of multicast routes | 128,000 |
Number of Interior Gateway Management Protocol (IGMP) snooping groups | Shipping: 8,000 Maximum: 32,000 |
Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch | 16 |
Maximum number of Access Control List (ACL) entries | Single-slice forwarding engine: 5000 ingress 2000 egress |
Maximum number of VLANs | 4096** |
Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1,000 Maximum: 16,000 |
Maximum number of ECMP paths | 64 |
Maximum number of port channels | 512 |
Maximum number of links in a port channel | 32 |
Number of active SPAN sessions | 4 |
Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3,967 |
Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
Number of Network Address Translation (NAT) entries | 1,023 |
Maximum number of Multiple Spanning Tree (MST) instances | 64 |
Flow-table size used for Cisco Tetration Analytics platform | 64,000 |
Number of Queues | 8 |
Environmental properties | |
Operating temperature | 32 to 104°F (0 to 40°C) |
Nonoperating (storage) temperature | –40 to 158°F (–40 to 70°C) |
Humidity | 5 to 95% (noncondensing) |
Altitude | 0 to 13,123 ft (0 to 4000m) |
Weight | |
Cisco Nexus 93180YC-FX3 without power supplies or fans | 21 lb (9.52 kg) |
N9K-C93180YC-FX3 : Nexus 9300 with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28
