Cisco WAP581 Wireless-AC Dual Radio Wave 2 Access Point with 2.5GbE LAN ● Provides cost-effective 802.11ac Wave 2 connectivity with speeds up to 2.8 Gbps. ● Supports 4 x 4 Multi-User Multiple-Input, Multiple-Output (MU-MIMO) technology on 5.0-GHz radio and 3 x 3 MIMO technology on 2.4-GHz radio for maximum performance. ● Supports Dual Gigabit Ethernet (2.5G and 1G) LAN with Energy Efficient Ethernet and link aggregation. ● Supports both Power over Ethernet (PoE) and AC power with external power adapter.

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

Thiết bị không dây Wifi Cisco WAP581-E-K9

Specifications	Description
Standards	IEEE 802.11ac, 802.11a, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (spanning tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), and IPv6 (RFC 2460)
Cabling type	Category 5e or better
Antennas	Internal antennas optimized for installation on a wall or ceiling
Operating system	Linux Software

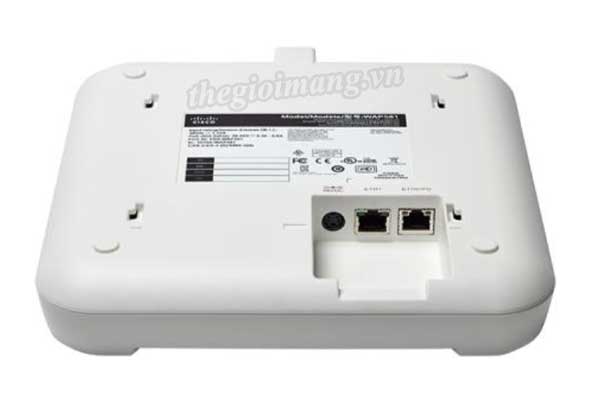

Physical Interfaces
Ports	2 GE ports - one 2.5G and second one 10/100/1000 Ethernet, with support for 802.3at at PoE; support is only for port 1
Buttons	Reset button
Lock slot	Slot for Kensington lock
LEDs	One multifunction LED
Physical Specifications
Physical dimensions (H x W x D)	1.5 x 9.0 x 9.0 in. (38x 229 x 229 mm)
Weight	3 lb (1.4kg)
Network Capabilities
VLAN support	Yes
Number of VLANs	1 management VLAN plus 32 VLANs for SSIDs
802.1X supplicant	Yes
Service Set Identifier (SSID)-to-VLAN mapping	Yes
Auto-channel selection	Yes
Spanning tree	Yes
Load balancing	Yes
IPv6	Yes ● IPv6 host support ● IPv6 RADIUS, syslog, and Network Time Protocol (NTP)
Layer 2	802.1Q-based VLANS, 32 active VLANS plus 1 management VLAN
Security
W-Fi Protected Access (WPA) and WPA2	Yes, including enterprise authentication
Access control	Yes, management access control list (ACL) plus MAC ACL
Secure management	Secure HTTP (HTTPS)
SSID broadcast	Yes
Rogue access point detection	Yes
Mounting and Physical Security
Multiple mounting options	Mounting bracket included for easy ceiling or wall mounting
Physical security lock	Kensington lock slot
Quality of Service
QoS	Wi-Fi Multimedia and Traffic Specification (WMM TSPEC) and client QoS
Performance
Wireless throughput	Up to 2.8-Gbps data rate (real-world throughput varies)
Recommended user support	Up to 200 connective users; 50 active users per radio

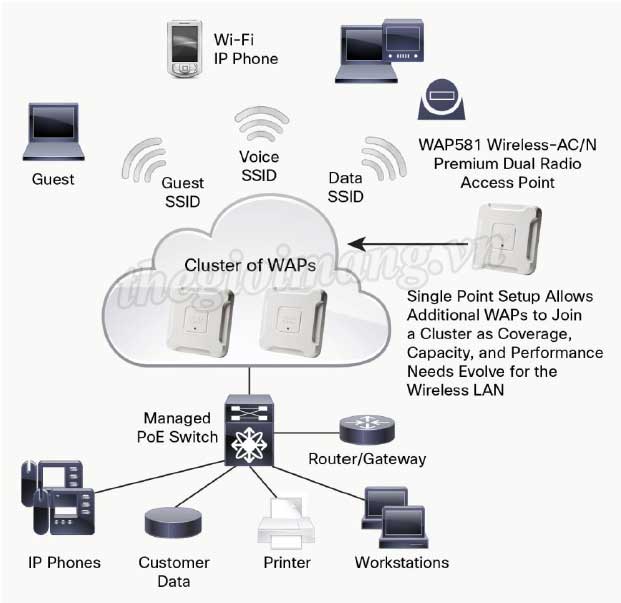

Multiple Access Point Management
Single Point Setup	Yes
Number of access points per cluster	16
Active clients per cluster	960
Configuration
Web user interface	Built-in web user interface for easy browser-based configuration (HTTP and HTTPS)
Management
Management protocols	Web browser, Simple Network Management Protocol (SNMP) v3, and Bonjour
Remote management	Yes
Event logging	Local, remote syslog, and email alerts
Network diagnostics	Logging and packet capture
Web firmware upgrade	Firmware upgradable through web browser; imported or exported configuration file
Dynamic Host Configuration Protocol (DHCP)	DHCP client
IPv6 host	Yes
HTTP redirect	Yes
