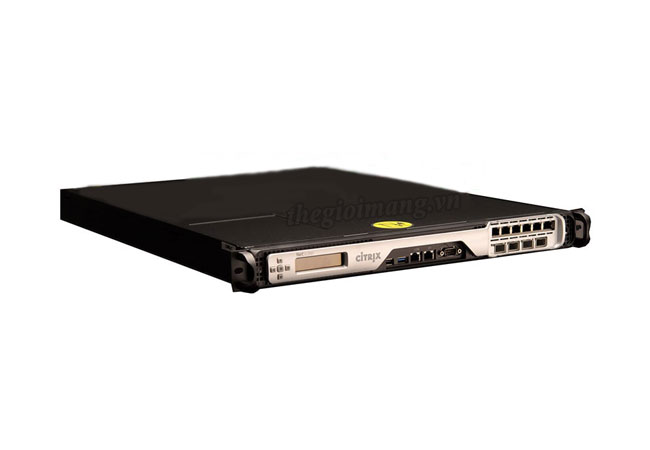

Thiết bị cân bằng tải Citrix ADC MPX 8920
| Model | MPX 8920 |
| Attributes | |
| Memory | 32 GB |
| Ethernet ports | 4x 10GE SFP+ 6x 10/100/1000 CU |
| Transceivers support | 10GE SFP+: SR, LR |
| RAID support | No |
| Pay-As-You-Grow & Burst Pack License upgrades | Upgrade option to MPX/SDX 8930 |
| System throughput, Gbps (L7 throughput) | 20 |
| L7 HTTP requests/sec | 1700000 |
| SSL transactions/sec (2K key certificates) | 22000 |
| ECDHE transactions/sec | 10000 |
| SSL throughput, Gbps | 20 |
| Compression throughput, Gbps | 4 |
| ICA Proxy/SSL VPN concurrent users (125 Kbps Response Packet Size) | 12000 |
| Number of instances included/Maximum number of instances (on SDX models) | N/A |
| Mechanical, environmental, and regulatory | |
| Power supplies | 1 (2nd optional) |
| Input voltage and frequency ranges | 100-240VAC full range, 50-60 Hz |
| Optional DC power supply | Yes |
| Max power supply | 275W |
| Typical, Max power consumption | 225W |
| Weight, lbs | 25 |
| Height | 1U |
| Width | EIA 310-D for 19 inch racks |
| Depth | 61 cm (24 in) |
| Operating temperature | 0-45 °C (32-113 °F) |
| Allowed relative humidity | 5-95%, non-condensing |
| Safety certifications | CSA |
| Electromagnetic emission certifications & susceptibility standard | FCC, CE, VCCI, RCM, CCC, KCC, BIS, NOM, CITC, ICASA, EAC |
| Regulatory compliance | RoHS, WEEE, REACH |
| Citrix compliance regulatory model | 1U1P1A |
