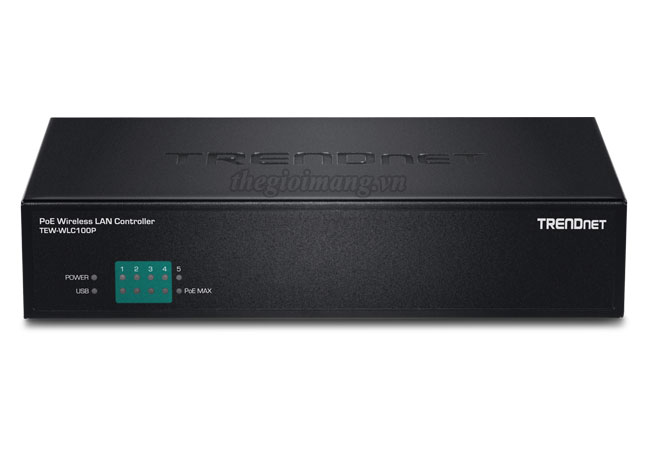

Thiết bị Wireless LAN Controller Trendnet TEW-WLC100P
Model |
TEW-WLC100P |
Standards |
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
|

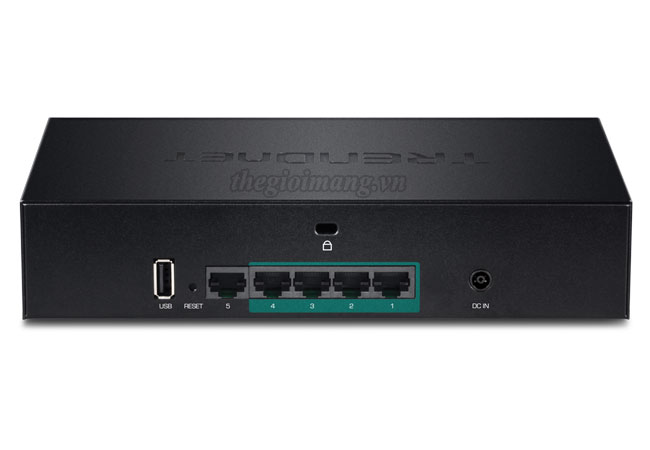

Device Interface |
- 4 x Gigabit PoE+ ports
- 1 x Gigabit port
- 1 x USB port (Firmware upgrade and configuration backup/restore)
- On/Off Power button
- LED indicators
- Reset button
|
Management |
- HTTP Web based GUI
- Local or online firmware upgrade
- Internal log
- Configuration Backup/Restore
- NTP
|
Access Point Management |
- Manage up to 128 access points
- IP address, gateway, and DNS settings
- SSID/Network name
- Wireless channel
- Wireless encryption: WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
- 802.11 mode
- Channel width
- Transmit power
- SSID broadcast
- Bandwidth control (download limit per SSID & client, upload limit per client)
- Set RSSI scanning/threshold
- Seamless WiFi roaming using 802.11r and OKC (opportunistic key caching) protocols
- 802.11k radio resource management
- Band steering
- Airtime Fairness
- Access point/client statistics monitoring
- Batch firmware upgrade deployment
- Captive portal
- Client blacklist
- 802.1Q VLAN
- Create multiple access point groups for management flexibility
- Upload custom floor plans using WAP Maps™
|
Access Point Compatibility |
- TEW-755AP (Firmware Version: 1.04 or above)
- TEW-821DAP (Firmware Version: 1.06 or above)
- TEW-825DAP (Firmware Version: 1.02 or above)
- TEW-826DAP (Firmware Version: 1.00 or above)
|
PoE |
- Power budget: 62W
- Pins 1,2 for power+ and pin 3,6 for power- (mode A)
- Enable/disable PoE per port
- PoE scheduling
- PD auto/manual classification
- PoE port priority
|
Power |
- Input: 100 – 240V AC, 50/60Hz
- Output: 54V DC, 1.67A external power adapter
- Max. consumption: 90W
|
Operating Temperature |
|
Operating Humidity |
|
Dimensions |
- 215 x 130 x 44.45mm (8.27 x 6.3 x 1.73 in.)
- Rack mountable 1U height
|
Weight |
|
Certifications |
|
