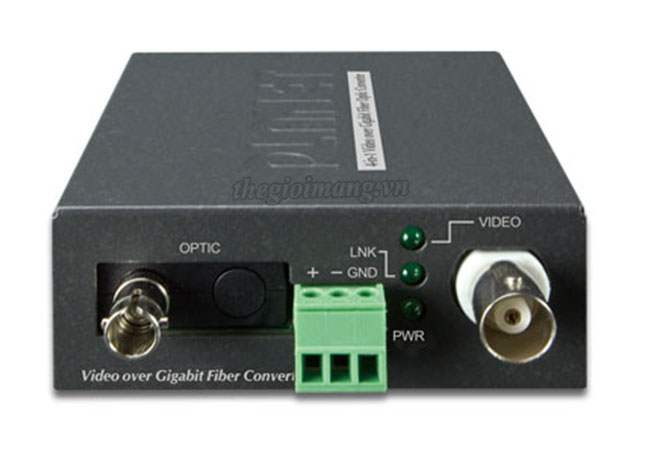

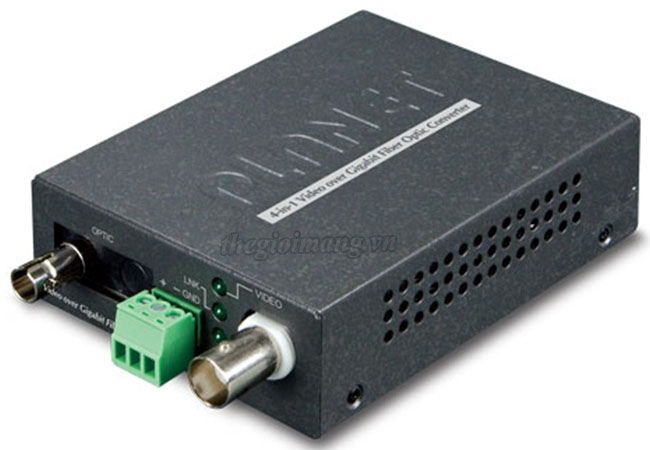

Conversion Planet VF-101G-KIT : 1-Channel 4-in-1 Video over Gigabit Fiber Bundle Kit (VF-101G-T + VF-101G-R)
Thiết bị Conversion Planet VF-101G-KIT
| Product | VF-101G-KIT |
|---|---|
| Video Characteristics | |
| Video Channel | 1 channel bi-direction |
| Signal Mode | NTSC/PAL/SECAM |
| Video Connector | BNC |
| Video Bandwidth | 60MHz |
| Video Input/Output Voltage | 1.0 Vpp/typical peak-to-peak value |
| Video Input/Output Impedance | 75ohm/unbalanced interface |
| Supported Video Type | 1080p: AHD/TVI/CVI 480p: CVBS |
| Video Digital Bit Width | 8/10 bit |
| Differential Gain (DG) | < 1.3% (typical value) |
| Differential Phase (DP) | < 1.3° (typical value) |
| SNR Weighted | > 67dB (typical value) |
| Data Interface | |
| Data Channel | 1 channel |
| Physical Protocol | RS485 |
| Operation Mode | Simplex |
| Data Connector | 3-pin terminal block with screw clamps |
| Data Rate | DC-115.2Kbps |
| Bit Error Rate (BER) | < 10ns |
| Optical Interface | |
| Optical Connector | ST |
| Distance | 20km for single mode |
| Optical Wavelength |
VF-101G-T:
VF-101G-R:
|
| Launch Power (dBm) | Max.: 0, Min.: -9 |
| Receive Sensitivity (dBm) | -26 |
| Max. Input Power (dBm) | -3 |
| Cable | 9/125μm single mode cable |
| Hardware Specifications | |
| LED Indicators |
|
| Dimensions (W x D x H) | 94 x 70 x 26 mm |
| Weight | 200g |
| Power Requirement | 5V DC, 2A |
| Power Consumption | 4.8 watts (maximum) |
| Mechanical | Metal |
| Installation | Wall-mountable, DIN-rail (with optional kit), chassis installation (with optional chassis) |
| Compatible Converter Chassis | MC-700/MC-1500/MC-1500R |
| Standards & Environment | |
| Regulatory Compliance | FCC, CE |
| Operating | Temperature: -25 ~ 70 degrees C Relative Humidity: 0 ~ 95% (non-condensing) |
| Storage | Temperature: -30 ~ 80 degrees C Relative Humidity: 0 ~ 95% (non-condensing) |
Packet Contents
