Mô tả sản phẩm

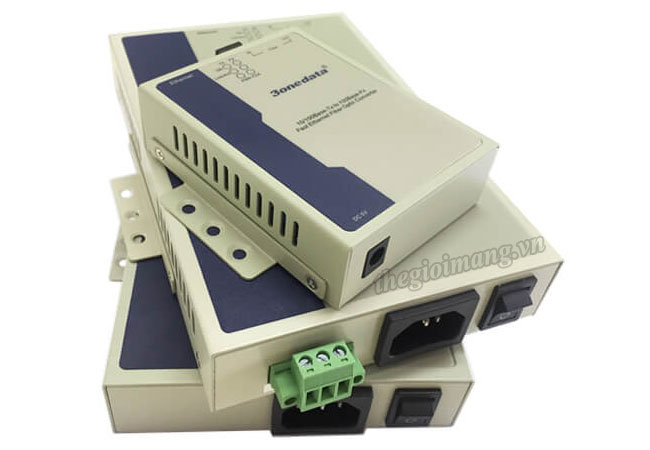

Bộ chuyển đổi quang điện Media Converter 3onedata MODEL1100-220VAC

Model	MODEL1100-220VAC
Standard & Protocol	• IEEE 802.3 for 10Base-T • IEEE 802.3u for 100Base-TX and 100Base-FX
Copper Port	• 10/100Base-T(X), RJ45, automatic flow control, full/half duplex mode, MDI/MDI-X autotunning
Fiber Port	• Standard: 100Base-FX • Connection mode: SC/ST/FC optional • Transmission distance: - Multimode: 2km - Single mode: 20/40/60/80/100/120km • Fiber cable: - Multimode: 50/125μm or 62.5/125μm - Single mode: 8.3/125μm, 8.7/125μm, 9/125μm or 10/125μm • Transmission wavelength: - Multimode: 1310nm - Single mode: 1310nm or 1550nm
LED Indicator	• Port indicator, power supply indicator
Power Requirement	• Built-in 220VAC, AC socket with switch
Power Consumption	• 4W
Environmental Limit	• Operating temperature: -10~60℃ • Storage temperature: -20~70℃ • Relative humidity: 5%～95%（no condensation）
Physical Characteristic	• Housing: metal • Installation: wall or DIN-Rail mounting • Dimension (W x H x D): 115mm×30mm×173.2mm (built-in power supply)
Certification	• CE, FCC, RoHS
