Mô tả sản phẩm

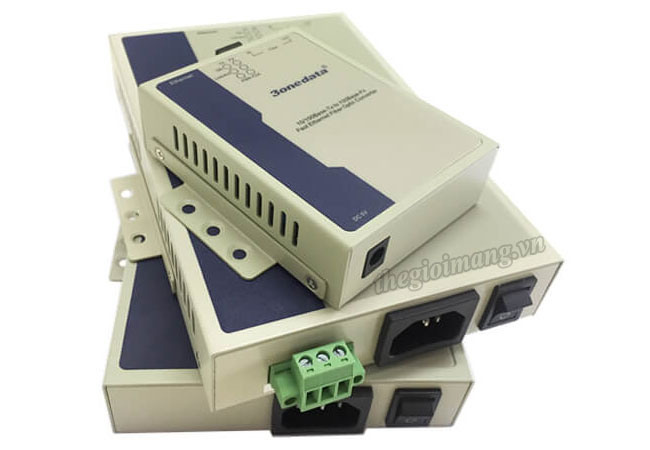

Bộ chuyển đổi quang điện Media Converter 3onedata MODEL1100-M-SC-2KM

Model	MODEL1100-M-SC-2KM
Standard & Protocol	• IEEE 802.3 for 10Base-T • IEEE 802.3u for 100Base-TX and 100Base-FX
Copper Port	• 10/100Base-T(X), RJ45, automatic flow control, full/half duplex mode, MDI/MDI-X autotunning
Fiber Port	• Standard: 100Base-FX • Connection mode: SC/ST/FC optional • Transmission distance: - Multimode: 2km • Fiber cable: - Multimode: 50/125μm or 62.5/125μm • Transmission wavelength: - Multimode: 1310nm
LED Indicator	• Port indicator, power supply indicator
Power Requirement	• Support three kinds of mains input methods - External 5VDC, DC round head - Built-in 220VAC, AC socket with switch - Built-in 48VDC, 3-pin 5.08mm pitch terminal blocks
Power Consumption	• 4W
Environmental Limit	• Operating temperature: -10~60℃ • Storage temperature: -20~70℃ • Relative humidity: 5%～95%（no condensation）
Physical Characteristic	• Housing: metal • Installation: wall or DIN-Rail mounting • Dimension (W x H x D): - 70.6mm×26mm×94mm (external power supply) - 115mm×30mm×173.2mm (built-in power supply)
Certification	• CE, FCC, RoHS
