Mô tả sản phẩm

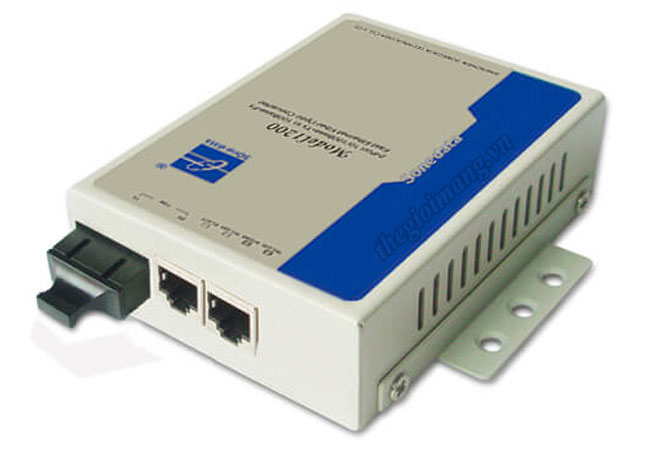

Bộ chuyển đổi quang điện Media Converter 3onedata MODEL1200-48VDC

Model	MODEL1200-48VDC
Standard & Protocol	• IEEE 802.3 for 10Base-T • IEEE 802.3u for 100Base-TX and 100Base-FX
Copper port	• 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
Fiber port	• Standard: 100Base-FX • Connection mode: optional SC/ST/FC • Transmission distance: - multimode: 2km - single mode: 20/40/60/80/100/120km • Fiber optical cable: - multimode: 50/125μm or 62.5/125μm; - single mode: 8.3/125μm, 8.7/125μm, 9/125μm or 10/125μm • Transmission wavelength: - multimode: 1310nm - single mode: 1310nm or 1550nm
Indicator	• Power supply indicator, fiber port indicator, copper port indicator
Power supply	• Built-in -48VDC 3-pin 5.08mm pitch terminal blocks
Power consumption	• 4W
Working environment	• Operating temperature: -10~60℃ • Storage temperature:-20~70℃ • Relative humidity: 5%～95%(no condensation)
Physical Characteristic	• Shell: metal shell • Installation: wall or DIN-Rail mounting • Dimension (W x H x D): 115mm×30mm×173.2mm (built-in power supply)
Certification	• CE, FCC, RoHS
