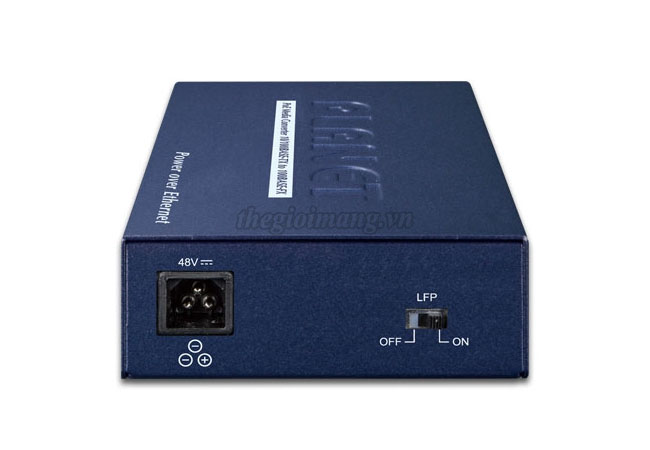

Converter Planet FTP-802S15

Planet FTP-802S15: 100Base-FX to 10/100Base-TX PoE Media Converter (SC,SM)-15km ● 1-port Fast Ethernet TP interface ● Fiber Single-mode, SC, 1310nm, 15km ● PoE Standard: IEEE 802.3af Power over Ethernet
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Bộ chuyển đổi quang điện Planet FTP-802S15

Model FTP-802S15
Interface
Copper 1-port Fast Ethernet TP interface, auto negotiation, auto-MDI / MDI-X with PoE injector function
Fiber Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiber
Fiber Port Type (connector) SC
Cable Distance 15km
Optical Frequency 1310nm
Launch Power (dBm) max.-7
min.-20
Receive Sensitivity -28
Maximum Input Power -8
Power Over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet
Power Output PoE 48V DC, max. 15.4 watts, 350mA
Power Pin Assignment 1/2(+), 3/6(-)
Hardware Specifications
Switch Architecture Store-and-Forward
Flow Control Back pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode
Dimensions (H x W x D) 26 x 70 x 97 mm
Weight 0.2 kg
Power Supply 48V DC, 0.4A external AC-to-DC adapter
Operating Temperature 0~50 degrees C
Operating Humidity 5~90% (non-condensing)
LFP Mode Enable: when either TP port or FX port is broken, shut down the other port
Disable: Link LED indicators is still on if connection of the other end is broken
Environments & Standards
Protocols and Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
Cables TP: Cat 5/5e UTP cable
Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiber
Regulatory Compliance FCC Part 15 Class A, CE

Data sheet Planet FTP-802S15


Những tính năng chính Industrial Media Converter Planet FTP-802S15

  • Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX, IEEE 802.3afPower over Ethernet standards
  • Auto negotiation for 10/100Base-TX half duplex mode or full duplex mode, auto-MDI / MDI-X function on copper port
  • IEEE 802.3x full duplex flow control and back pressure in half duplex eliminate packets loss
  • Provides DC 48V power over RJ-45 Ethernet cable to devices with Ethernet port
  • Auto-detect PoE IEEE 802.3af equipment; protects devices from being damaged by incorrect installation
  • 100Base-FX interface for up to 2km (multi-mode fiber 50µm/125µm, 62.5µm/125µm) on FTP-802
  • 100Base-FX interface for up to 15km (single-mode fiber 9µm/125µm) on FTP-802S15
  • DIP-switch: LFP (Link Fault Pass-through) mode selection
  • Compact in size, easy to install
  • LED indicators for easy network diagnostics
