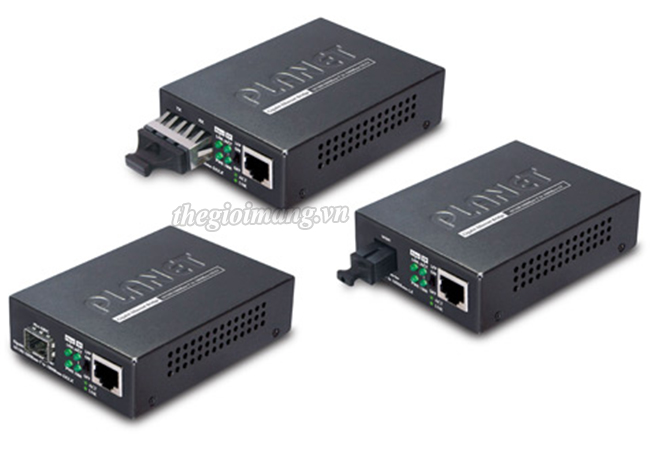

Converter Planet GT-802: 10/100/1000BASE-T to 1000BASE-SX Media Converter (SC, MM)-220/550m
Thiết bị mạng Converter Planet GT-802
| Product | GT-802 |
|---|---|
| Hardware Specifications | |
| Hardware Version | 3 |
| Ports | 1 x 10/100/1000BASE-T port 1 x 1000BASE-SX SC port |
| Copper Interface | RJ-45 port (Auto-MDI/MDI-X) Twisted Pair |
| Optic Interface | SC |
| Fiber Maximum Distance | 220/550m |
| Optic Wavelength | 850nm |
| Max. Optical Launch Power | -4dBm |
| Min. Optical Launch Power | -9.5dBm |
| Max. Input Power | N/A |
| Min. Input Power | -18 |
| Optical Link Budget | 3dB(62.5/125μm) 4dB(50/125μm) |
| LED Indicator | ■ PWR ■ TP LINK/ACT, 1000 ■ Fiber LINK/ACT |
| DIP Switch | LFP function (Disable/Enable) setting |
| Power Consumption | 4.6 watts / 15 BTU (maximum) |
| Power Input | DC 5V/2A |
| Dimensions (W x D x H) | 26 x 70 x 97 mm |
| Weight | 0.2kg |
| Converter Specifications | |
| Speed | Twisted-pair: 10/20Mbps for half/full-duplex 100/200Mbps for half/full duplex 2000Mbps for full-duplex Fiber-optic: 2000Mbps for full-duplex |
| Network Cables | Twisted-pair 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100m 100BASE-TX: 2-pair UTP Cat. 5, up to 100m 1000BASE-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. 1000BASE-LX: 9/125μm single-mode cable, providing long distance for 10/15/20/30/40/50/60/70/120km (vary on SFP module) 100BASE-FX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 2km(vary on SFP module) 9/125μm single-mode cable, providing long distance for 20/40/60m (vary on SFP module) |
| OAM | TS-1000 and IEEE 802.3ah Terminal mode supported |
| Jumbo Packet Size | 9K |
| Standard Conformance | |
| Standards Compliance | IEEE 802.3, 10BASE-T IEEE 802.3u, 100BASE-TX IEEE 802.3ab, 1000BASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3x Full-duplex flow control |
| Environment | |
| Operating Environment | Operating temperature: 0 to 50 degrees C; Humidity: 5~95% non-condensing |
| Storage Environment | storage temperature: -10 to 70 degrees C; Humidity: 5~95% non-condensing |
Giá chỉ mang tính tham khảo. Vui lòng liên hệ để có giá tốt nhất
