Mô tả sản phẩm

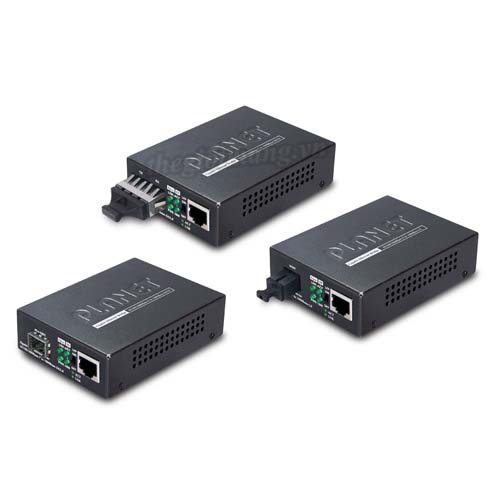

Converter Planet GT-80x Series

Hardware Version	3
Standards	IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX
Ports	1 x 10/100/1000Base-T port, 1 x 1000Base-SX/LX port
Copper Interface	RJ-45 port (Auto-MDI/MDI-X) Twisted Pair
Optic Interface	GT-802/GT-802S: SC GT-805A: SFP
Fiber Maximum Distance	GT-802: 220 / 550m GT-802S: 10km GT-805A: N/A
Optic Wavelength	GT-802: 850nm GT-802S: 1310nm GT-805A: N/A
Max. Optical Launch Power	GT-802: -4dBm GT-802S: -3dBm GT-805A: N/A
Min. Optical Launch Power	GT-802: -9.5dBm GT-802S: -9.5dBm GT-805A: N/A
Max. Input Power	GT-802: N/A GT-802S: -3 GT-805A: N/A
Min. Input Power	GT-802: -18 GT-802S: -20 GT-805A: N/A
Optical Link Budget	GT-802: 　　3dB(62.5/125μm) 　　4dB(50/125μm) GT-802S: 4.9dB GT-805A: N/A
Speed	Twisted-pair: 　　10/20Mbps for half/full-duplex 　　100/200Mbps for half/full duplex 　　2000Mbps for full-duplex Fiber-optic: 2000Mbps for full-duplex
Cable	Twisted-pair 　　10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m 　　100Base-TX: 2-pair UTP Cat. 5, up to 100m 　　1000Base-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 　　50/125μm or 62.5/125μm multi-mode fiber cable, up to 　　220/550m. 　　9/125μm single-mode cable, providing long distance for 　　10/15/20/30/40/50/60/70/120km (vary on fiber transceiver 　　or SFP module)
LED Indicator	‧PWR ‧TP LINK/ACT, 1000 ‧Fiber LINK/ACT
DIP Switch	LFP function (Disable / Enable) setting
OAM	TS-1000 and IEEE 802.3ah Terminal mode supported
Jumbo Packet Size	9K
Power Consumption	4.6 watts / 15 BTU (maximum)
Power Input	DC 5V / 2A
Dimensions (W x D x H)	26 x 70 x 97 mm
Weight	0.2kg
Operating Environment	Operating temperature: 0 to 50 degrees C; Humidity: 5~95% non-condensing
Storage Environment	storage temperature: -10 to 70 degrees C; Humidity: 5~95% non-condensing
Emissions	FCC Class A, CE Class A
