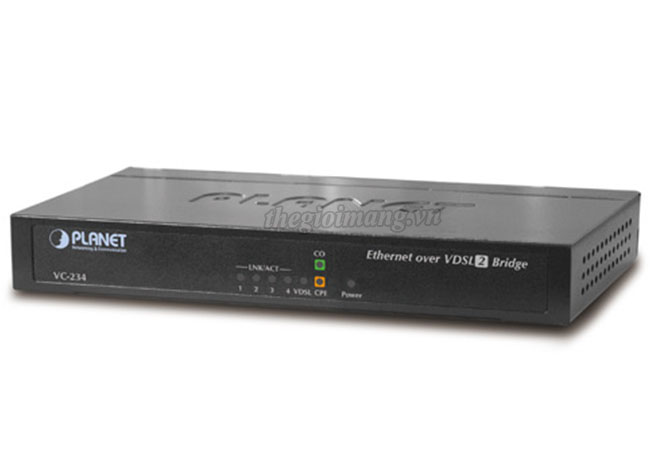

Converter Planet VC-234 : Ethernet over VDSL2 Converter (1 x RJ45, 1 x VDSL2/RJ11,17a/30a)
Thiết bị Converter Planet VC-234
| Product | VC-234 |
| Hardware Specification | |
| Ports | 10/100Base-TX: 4x RJ-45, Auto-Negotiation and Auto-MDI/MDI-X VDSL: 1x RJ-11, female Phone Jack PHONE: 1x RJ-11, Built-in splitters for POTS connection |
| DIP Switch | 4 position DIP switch |
| Functionality | • CO / CPE mode select • Selectable fast and interleaved mode • Selectable target 17a / 30a profiles • Selectable target SNR mode |
| Encoding | • VDSL-DMT: - ITU-T G.993.1 VDSL - ITU-T G.997.1 - ITU-T G.993.2 VDSL2 (Profile 17a/30a Support) |
| LED Indicators | • One Power • 4 for RJ-11/VDSL2 • 1 for per RJ-45 10/100Base-TX port |
| Cabling | Ethernet 10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft) 100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft) VDSL Twisted-pair telephone wires (AWG24 or better) up to 1.4km |
| Performance (Downstream / Upstream) |
• 17a profile 300m -> 99/70Mbps 400m -> 99/60Mbps 600m -> 90/45Mbps 800m -> 50/28Mbps 1000m -> 40/12Mbps 1200m -> 20/7Mbps 1400m -> 20/4Mbps • 30a profile 300m -> 100/100Mbps 400m -> 90/90Mbps 600m -> 69/55Mbps 800m -> 48/9Mbps |
| Power Requirement | 5V DC, 2A |
| Power Consumption | 7.2 Watts/ 24 BTU |
| Dimension (W x D x H) | 155 x 86 x 26 mm |
| Weight | 368g |
| Environment | |
| Operating | Temperature: 0 ~ 50 Degree C Relative Humidity: 10 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 Degree C Relative Humidity: 10 ~ 90% (non-condensing) |
| Switch Specification | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Flow Control | Back pressure for half duplex IEEE 802.3x Pause Frame for full duplex |
| Switch fabric | 0.8Gbps |
| Throughput (packet per second) | 0.59Mpps |
| Network cables | 10/100Base-TX: 2-Pair UTP Cat. 3,4, 5 (100meters, max.) EIA / TIA-568 100-ohm STP (100meters, max.) |
| Standard Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX ITU-T - G.993.1 (VDSL) - G.997.1 - G.993.2 VDSL2 (Profile 17a/30a) |
