Name: Trendnet TFC-110S40D3i
Brand: Trendnet
SKU: TFC-110S40D3i
Rating: 5 (14 reviews)

Hỗ trợ trực tuyến

Hỗ trợ Tư Vấn

0909648899

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

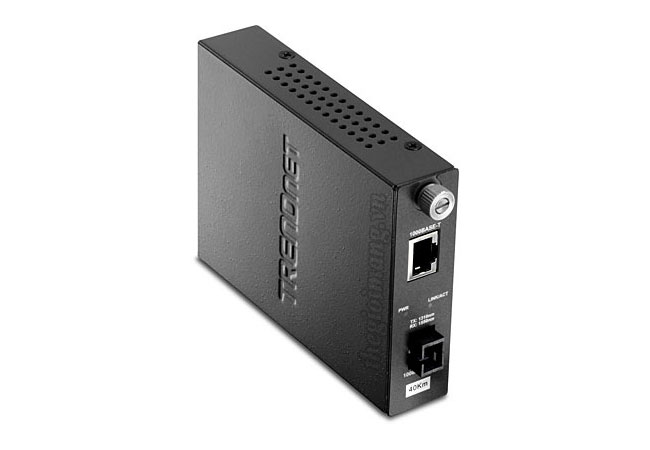

Bộ chuyển đổi quang điện Converter Trendnet TFC-110S40D3i

Model	TFC-110S40D3i
Standard	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/FX
Network Media	100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100 m 100Base-FX: Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 40 km
Protocol	CSMA / CD
Ports	1 x 10/100Base-TX 1 x 100Base-FX (simplex SC-type)
Dip Switch	Fiber (full / half duplex) UTP (auto negotiation / manual) Speed (10 Mbps / 100 Mbps) Copper (full / half duplex) LLR (enable / disable) LLCF (enable / disable)
Transfer Rate	100 Mbps (half duplex) / 200 Mbps (full duplex)
Diagnostic LEDs	Per Unit: power Per Port (TX): Link / Activity, FDX / HDX, Link Fail, Speed Per Port (FX): Link / Activity, FDX / HDX, Link Fail
Power Adapter	Input: 100~240 V 50/60 Hz, 0.2 A Output: 5 V DC, 1 A
Power Consumption	2 watts (max)
Dimensions	120 x 88 x 25 mm
Weight	354 g
Temperature	Operating: 0° ~ 40°C Storage: -25° ~ 70°C
Humidity	Max 90% (non-condensing)
Certifications	CE, FCC
Media	SMF
Wavelength	TX: 1310 nm RX: 1550 nm
Optical Output Power (dBm)	Min: -8 Max: -3
Optical Intput Power (dBm)	Min (Sensitivity): -34 Max: 3
Power Budget	26
Distance	40 km
