Mô tả sản phẩm

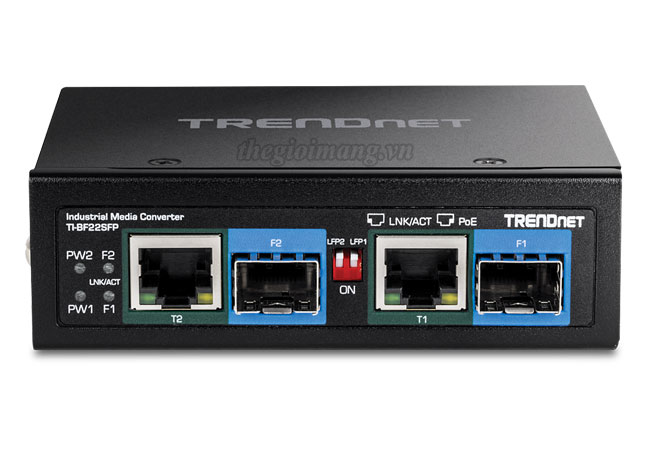

Bộ chuyển đổi quang điện Converter Trendnet TI-BF22SFP

Model	TI-BF22SFP
Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.3bt
Device Interface	2 x Gigabit SFP ports 2 x Gigabit PoE++ ports 4-pin removable terminal block LED indicators DIP switch DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Gigabit: 2Gbps (full duplex) SFP: 2Gbps (full duplex)
Performance	Data RAM buffer: 512KB MAC address table: 1K Jumbo frame: 16KB Switching fabric: 4Gbps
Special Features	Hardened components rated for extreme temperatures Auto-Negotiation Automatic address learning and address aging
Power	Input: 48 – 56V DC Required power supply: TI-S15052 (sold separately) Consumption: 3.84W (without PoE) @ 48V DC
PoE	Pins 3, 4, 5, 6 for power (+) and pins 1, 2, 7, 8 for power (-) PoE budget: 90W
Terminal Block	Power and relay inputs, 4 pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5lbs. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
DIP Switch	1: OFF: T1 LFP disabled (default), ON: LFP enabled 2: OFF: T2 LFP disabled (default), ON: LFP enabled
MTBF	551,468 hours
Housing	IP30 rated metal housing DIN-Rail mount Wall mount Grounding point
Operating Temperature	- 40° - 75° C
Operating Humidity	Max. 95% non-condensing
Dimensions	104 x 81.5 x 32mm
Weight	176g
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
