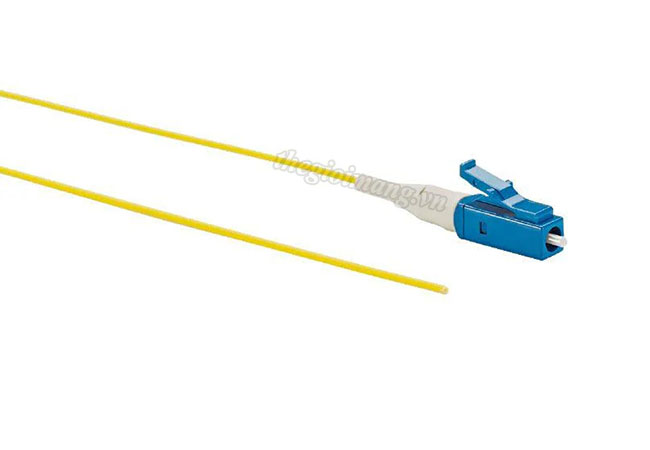

Pigtail Panduit NKFP91BN1NNM001 - Dây nối quang 1 core, OS2 - Single Mode
Dây nối quang (Pigtail) Panduit NKFP91BN1NNM001 - Singlemode, OS2, LC connector
| Mã sản phẩm | NKFP91BN1NNM001 |
|---|---|
| Fiber Type | OS2 |
| Number of Fibers | 1 |
| Connector 1 Type | LC Simplex |
| Connector 2 Type | Pigtail |
| Sub Brand | NetKey® |
| Maximum Connector Insertion Loss (dB) | 0.3 |
| Minimum Connector Return Loss (dB) | 50 |
| Overall Length (m) | 1 |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Installation Temperature (°C) | 60 |
| Minimum Installation Temperature (°C) | -10 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Yellow |
| Environment | Indoor |
| Standards Met | TIA/EIA 568-C.3-1 and ISO/IEC 61755-3-1 IEC-61754-7 (International), TIA-604-2-A, -3-A, and -10-A, FOCIS -2, -3, and -10, RoHS Compliant |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Boot Color | Electric Ivory |
| Part Features | Riser rated patch cords support installations that require this flame rating in specific environments |
Panduit Fiber Optic Patch Cords and Pigtails
Panduit NKFP91BN1NNM001 - NK Fiber OS2 LC simplex pigtail, 1m
Dây Pigtail đấu nối sợi quang 1 core, OS2 - Single Mode
