Mô tả sản phẩm

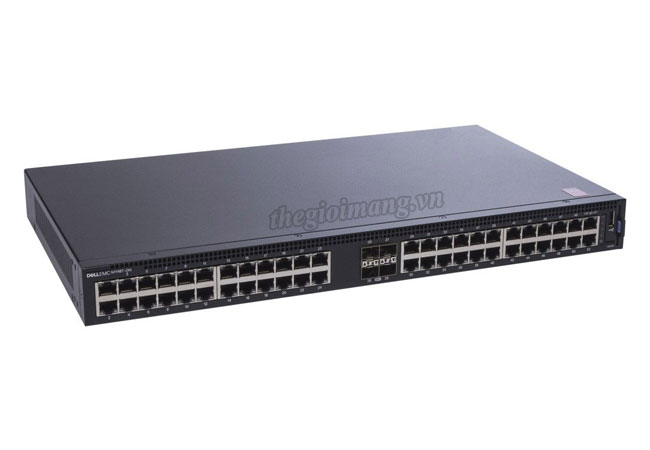

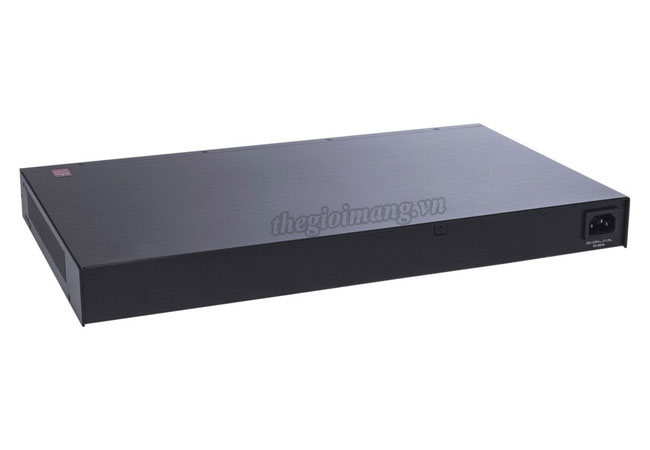

Thiết bị chuyển mạch Switch Dell EMC N1148T-ON

Model	N1148T-ON
Description	48x 10/100/1000Mbps half/full duplex RJ45 ports, 4x SFP+ 10GbE ports, 1 RU, fanless
Physical	USB (Type A) port for configuration via USB flash drive Auto-negotiation for speed and flow control Auto MDI/MDIX, port mirroring Flow-based port mirroring Broadcast storm control Energy-Efficient Ethernet per port settings Integrated power supply: 60W AC Micro USB Console port (Micro USB to USB cable included) Dual firmware images on-board Switching engine model: Store and forward
Chassis	Size (H x W x D) in inches: 1.75 x 17 x 10 Approximate weight: 3.78kg Rack mounting kit with 2 mounting brackets, bolts and cage nuts 1RU tray to accommodate two half rack width switches (kit includes L-brackets for 800mm deep rack/ cabinet)
Environmental	Power supply efficiency : 80% or better in all operating modes Max. thermal output (BTU/hr) : 102.98 Power consumption max (watts) : 30.18 Operating temperature : 32° to 113°F (0° to 45°C) Operating humidity : 95% Storage temperature: –40° to 149°F (–40° to 65°C) Storage relative humidity: 85%
Performance	MAC addresses : 16K Switch fabric capacity : 176Gbps Forwarding rate : 132Mpps (89 Gbps) Link aggregation: 64 LAG groups, 144 dynamic ports per stack, 8 member ports per LAG Queues per port : 8 Line-rate Layer 2 switching : All (non-blocking) Flash memory : 1GB Packet buffer memory: 4MB CPU memory: 1GB VLANs supported: 512 Protocol-based VLANs: Supported ARP entries: 2,048 (IPv4)/512 (IPv6) NDP entries: 400 Access control lists (ACL): Supported MAC and IP-based ACLs: Supported Time-controlled ACLs: Supported Max ACL rules (system-wide): 4K Max configurable rules per list: 1023 Max ACL rules per interface and direction (IPv4/L2): 1023 Max ACL rules per interface and direction (IPv6): 1021 ing/253 egr Max ACL logging rules (system-wide) : 128 Max number of ACLs : 100 Max VLAN interfaces with ACLs applied : 24
