Mô tả sản phẩm

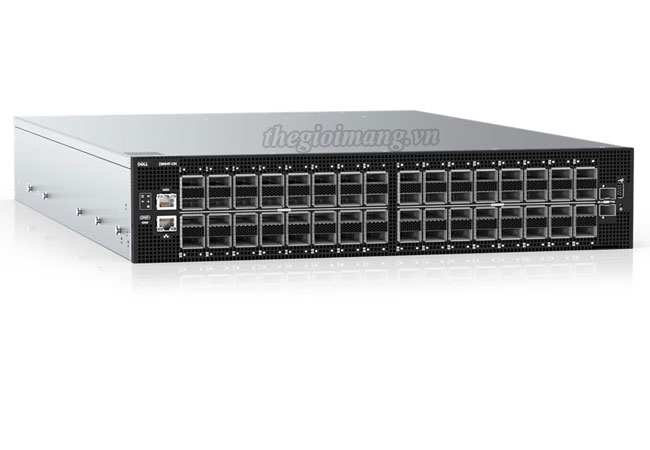

Thiết bị chuyển mạch Switch Dell EMC Z9664F-ON

Model	Z9664F-ON
Physical	• 1 RJ45 console/management port with RS232 signaling and USB type C port • 1 10/100/1000BASE-T Ethernet for management • 1 USB 3.0 type A storage port • 64 x 400GbE QSFP56-DD ports + 2 x SFP+ 10GbE
Performance	• Switch fabric capacity: 51.2Tbps (full duplex) • Forwarding capacity: 10.2Bpps • Latency: sub 850ns • Packet buffer memory: 113.66MB: 56.83MB per • Ingress Traffic Manager (ITM) • NPU Pipeline is programmable capable using NPL • CPU: Intel Ice Lake-D LCC D-1714 4 core @ 2.3GHz (up to 3.4GHz in Turbo mode) • CPU memory: 32GB DDR4 ECC • MAC addresses: 156K • ARP table: 16K standalone, 8K shared • IPv4 routes: up to 400K (ALPM) • IPv6 routes: 300K • Multicast hosts: 1K • Multicast IPv6 Routes : 4K • Layer 2 VLANs: 4K • MSTP: 64 instances • LAG load balancing: Based on layer 2, IPv4 or • IPv6 headers • Timing Card PTP/1588 and Sync-E • Trusted Platform Module • Supports up to 4 ports of 20W optics when in • IO/PSU airflow direction • Supports up to 15W optics in all QSFP56-DD ports in I/P mode, some restrictions in P/I Mode
Chasis	• Size: 2 RU, 438.5 x 630 x 87.5 mm (W x D x H) • Switch without PSU and Fan tray: 18.46 kg • Switch with PSU and Fan trays: 23 kg
Environmental	• Power supply: 100-240 VAC 50/60 Hz • Max. power consumption: 2125 Watts • Typ. power consumption: 500 Watts • Max. operating specifications: ₀ Operating temperature: 0° to 45°C ₀ Operating humidity: 5 to 90% (RH), non-condensing • Max. non-operating specifications: ₀ Storage temperature: –40° to 70°C ₀ Storage humidity: 5 to 95% (RH), non-condensing • Fresh air compliant to 45°C • Support AC both lowline and highline power modes
Redundancy	• Hot swappable redundant power (2 per switch, 1 + 1 redundancy except with low-line power) • Hot swappable redundant fans (4 per switch, 3+1 redundancy)
