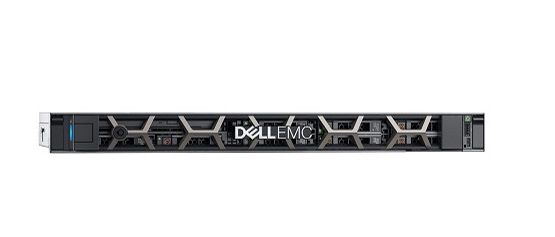

Cấu hình cơ bản máy chủ Dell PowerEdge R340 4x3.5" E-2144G, RAM 8GB, PERC H330:
Key Feature
- Processor: Intel Xeon E-2144G (4C , 3.6G )
- RAM: 8GB UDIMM, 2666MTs
- HDD: Option. Up to 4 HDD x 3.5" drive bay
- Network controller: On-Board LOM 1GBE
- Storage controllers: PERC H330
- Embedded management: iDRAC9 Basic
- PSU: 350W PSU
- Form factor: Rack (1U)
Thống số kỹ thuật Dell PowerEdge R340:
Processor:1 processor from the following:
- Intel® Xeon® E-2100 product family,
- Intel Pentium®,
- Intel Core i3®,
- Intel Celeron®
Bezel: Optional security bezel
Memory:
- DIMM Speed: Up to 2666MT/s
- Memory Type: UDIMM
- Memory Module Slots: 4 x DDR4 DIMM slots
- Maximum RAM: UDIMM 64GB
Management:
Embedded / At-the-Server:
- iDRAC9
- iDRAC Direct
- iDRAC RESTful API with Redfish
Consoles:
- OpenManage Enterprise
- OpenManage Power Center
Mobility: OpenManage Mobile
Tools:
- Dell EMC RACADM CLI
- Dell EMC Repository Manager
- Dell EMC System Update
- Dell EMC Server Update Utility
- Dell EMC Update Catalogs
- iDRAC Service Module
- IPMI Tool
- OpenManage Server Administrator
OpenManage Integrations:
OpenManage Connections:
- IBM Tivoli® Netcool/OMNIbus
- Micro Focus® Operations Manager I
- Nagios® Core
- Nagios® XI
Power Supplies:
- 350W Platinum
- 550W Platinum
- Hot plug power supplies with full redundancy option
Slots:
Storage Controllers:
Internal controllers: PERC H730P, H330, HBA330
Software RAID:
- S140
- External HBAs (non-RAID): 12Gbps SAS HBA
External PERC (RAID: H840
Boot Optimized Storage Subsystem:
- 2 x M.2 240GB
- 1 x M.2 240GB
Supported Operating Systems:
Rack Support: ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Storage:
Front Bays
- Up to 8 x 2.5” hot-plug SAS/SATA (SSD)
- Up to 4 x 3.5” hot-plug SAS/SATA (SSD)
Security:
- Cryptographically signed firmware
- Secure Boot
- Secure Erase
- Silicon Root of Trust
- System Lockdown (requires OpenManage Enterprise)
- TPM 1.2/2.0, TCM 2.0 optional
I/O and Ports:
Network Options: 2 x 1GbE LOM
Front Ports:
- 1 x Dedicated iDRAC direct micro-USB
- 1 x USB 2.0
Rear Ports:
- 1 x Serial
- 2 x USB 3.0
- 1 x VGA
Internal Ports: 1 x USB 3.0
Slots:
PCie: 2 x PCIe Gen3 slots
Form Factor: 1U Rack Server
Dimensions & Weight:
- Width: 434.0mm (17.1")
- Depth: 595.6mm (23.5")
- Weight: 13.6kg (29.9lbs.)
- *Dimensions do not include bezel
Cấu hình trên là cấu hình cơ bản. Vui lòng liên hệ để được tư vấn thêm dựa trên nhu cầu thực tế.
