Switch Dlink DES-1210-52 : ● 48 10/100BASE-TX ● 2 1000BASE-T ● 2 Combo 10/100/1000BASE-T / 100/1000SFP ● Switching Capacity 17.6 Gbps ● Forwarding Rate 13.1 Mpps

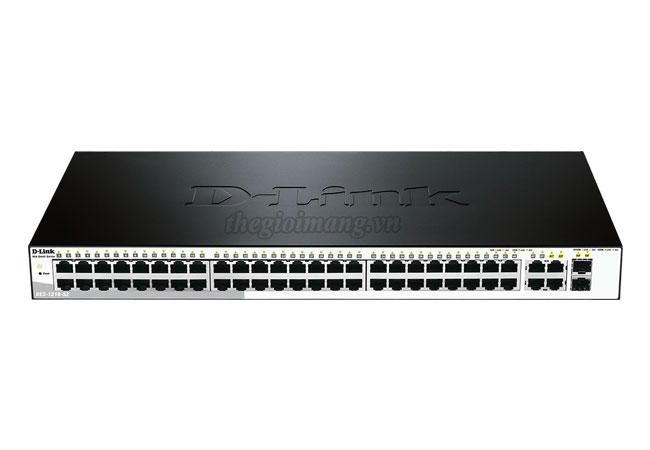

Thiết bị mạng Switch Dlink DES-1210-52
| Model | DES-1210-52 |
| General | |
| Size | • 19” metal case |
| Interface | • 48 10/100BASE-TX • 2 1000BASE-T • 2 Combo 10/100/1000BASE-T / 100/1000SFP |
| Port Standards | •IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) •IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) •IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper) •IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3 •Auto-negotiation •IEEE 802.3x Flow Control |
| Performance | |
| Switching Capacity | • 17.6 Gbps |
| 64-byte Maximum Forwarding Rate | • 13.1 Mpps |
| Packet Buffer Memory | • 13.1 Mbits |
| MAC Address Table Size | • 16K Entries |
| Flash Memory | • 16 MB |
| Forwarding Method | • Store and forward |
| Power over Ethernet (PoE) | |
| PoE Standard | • Not PoE Capable |
| PoE Capable Ports | |
| PoE Power Budget | |
| Physical/Environmental | |
| MTBF | • 429,482 hours |
| Acoustic | • 0 dB |
| Heat Dissipation | • 47.81 BTU/h |
| Power Input | • 100 to 240 VAC, 50 to 60 Hz Internal Universal Power Supply |
| Maximum Power Consumption | • 14.77 watts |
| Dimensions (W x D x H) | • 440 x 210 x 44 mm (17.32 x 8.27 x 1.73 inches) |
| Cooling Fans | • Fanless |
| Operation Temperature | • -5-50° C (23-122° F) |
| Storage Temperature | • -20-70°C (-4-158°F) |
| Operating Humidity | • 5% to 95% non-condensing |
