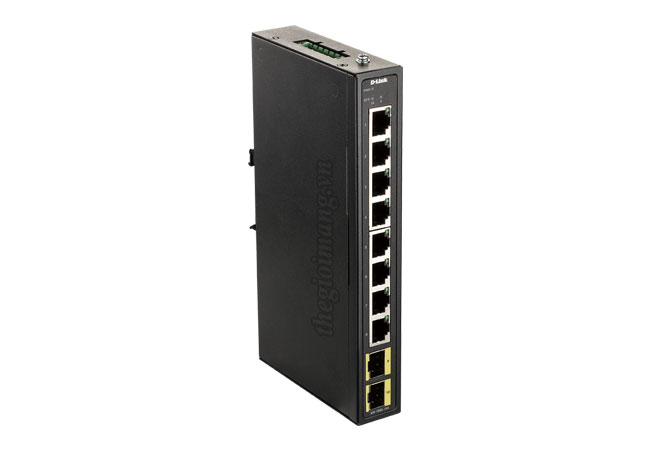

Thiết bị mạng Switch Dlink DIS-100G-10S
| Model | DIS-100G-10S |
| General | |
| Number of Ports | • 8 x 10/100/1000BASE-T ports • 2 x SFP port |
| Port Functions | • IEEE 802.3 for Ethernet • IEEE 802.3u for Fast Ethernet • IEEE 802.3ab for Gigabit Ethernet • IEEE 802.3z for Gigabit fiber • IEEE 802.3x Flow Control • IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Media Interface Exchange | • Auto-MDI/MDIX adjustment for all twisted pair ports |
| Performance | |
| Switching Capacity | • 20 Gbps |
| Maximum Forwarding Rate | • 14.88 Mpps |
| MAC Address Table Size | • Up to 4K entries |
| Transmission Method | • Store-and-forward |
| Jumbo Frame | • 9.6 KB |
| Advanced Features | • IEEE 802.1p Quality of Service (QoS) - 8 hardware queues per port |
| Physical | |
| Diagnostic LEDs | • PWR, SFP, Link/Activity |
| Power Input | • 12 to 48 VDC terminal block dual input |
| Power Consumption | • Maximum: 7.44 W • Standby: 2.64 W |
| Alarm Relay | • 1 A at 24 V |
| Heat Dissipation | • 25.37 BTU/hr |
| Weight | • 0.4977 kg |
| Dimensions | • 190 x 100 x 28 mm |
| Ventilation | • Fanless, passive cooling |
| Operating Temperature | • -20 to 65 °C |
| Storage Temperature | • -40 to 85 °C |
| Operating Humidity | • 5% to 95% RH, non-condensing |
| Storage Humidity | • 5% to 95% RH, non-condensing |
| Material | • IP40-rated metal casing |
| Installation | • DIN rail |
Liên hệ để có giá tốt
