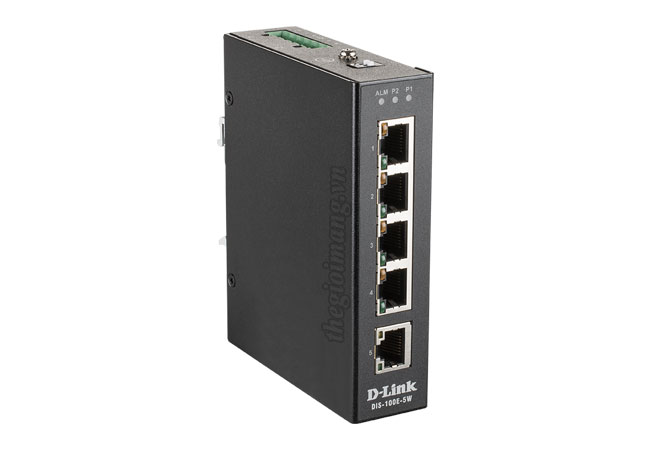

Thiết bị mạng Switch Dlink DIS‑100E‑5W
| Model | DIS‑100E‑5W |
| Ethernet | |
| Ethernet Interfaces | 5 x 10/100BaseT(X) ports |
| Operating Mode | Store and forward, L2 wire-speed/non-blocking switching engine |
| MAC Addresses | 1K |
| Flow Control | IEEE 802.3x (Full Duplex) and Back-Pressure(Half Duplex) |
| Fault contact | Power alarm relay output |
| DIP switches | Enable/Disable broadcast storm protection Enable/Disable Power Alarm |
| Copper RJ45 Ports | |
| Speed | 10/100 Mbps |
| MDI/MDIX Auto-Crossover | Support straight or cross wired cables |
| Auto-Negotiating | 10/100 Mbps speed auto-negotiation; Full and half duplex |
| Power | |
| Power Input | Redundant Input Terminals Reverse power protection |
| Input Voltage Range | 12-58 VDC |
| Power Consumption | Standby power: 0.95W Max. power: 1.56W |
| Compatible Power Supplies | DIS-H30-24, DIS-H60-24, DIS-N240-48, DIS-N480-48 |
| Environmental and Compliances | |
| Operating Temperature Range | -40 to +75°C |
| Storage Temperature Range | -40 to +85 °C |
| Humidity (Non-Condensing) | 5 to 95% RH |
| Vibration, Shock & Freefall | Vibration: IEC60068-2-6; Shock: IEC60068-2-27; Free Fall: IEC60068-2-32 |
| Certification Compliance | UL 60950-1, CE, FCC |
| Electrical safety | CSA C22, CE |
| EMC | FCC Part 15, CISPR 22 (EN55022) Class A, EN 61000-4-2, -3, -4, -5, -6 (Level 3) |
| RoHS & WEEE | RoHS (Pb free) and WEEE compliant |
| MTBF | > 25 years |
| Mechanical | |
| Ingress Protection | IP30 |
| Dimensions | 109.2 x 29.1 x 89.4 mm |
| Weight | 320 g |
| Installation Options | DIN-Rail mounting, Wall mounting |
