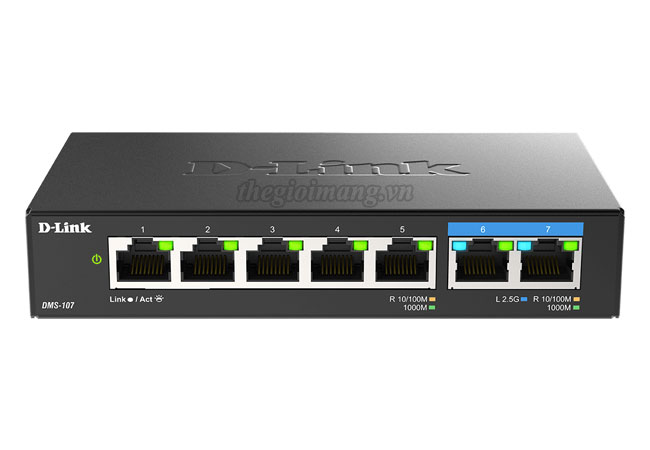

D-Link DMS-107 7 Port Multi-Gigabit Switch :
Thiết bị chuyển mạch Switch Dlink DMS-107
| Model | DMS-107 |
| General | |
| Device Interfaces | • 5 x 10/100/1000Mbps ports • 2 x 10/100Mbps/1G/2.5G ports |
| Standards | • IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3bz 2.5GBASE-T • IEEE 802.3x Flow Control1 • IEEE 802.1p QoS2 • IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Media Interface Exchange | • Auto MDI/MDIX adjustment for all ports |
| Performance | |
| Transmission Method | • Store-and-forward |
| Switching Capacity | • 20 Gbps |
| Max. Packet Forwarding Rate | • 14.88 Mpps |
| MAC Address Table | • 2K entries |
| MAC Address Learning | • Automatic update |
| Packet Buffer | • 2Mbit |
| LEDs | |
| Power (per unit) | ✓ |
| Link/Activity (per port) | ✓ |
| Physical | |
| Dimensions | • 145 x 82 x 28 mm |
| Weight | • 295.2 g |
| Power | • 12 V/0.5 A |
| Maximum Power Consumption | • 3.37 Watt |
| Temperature | • Operating: 0 to 40 °C • Storage: -10 to 70 °C |
| Humidity | • Operating: 10% to 90% RH • Storage: 5% to 90% RH |
| MTBF | • 944,277.78 hours |
| Heat Dissipation | • 14.28 BTU/h |
