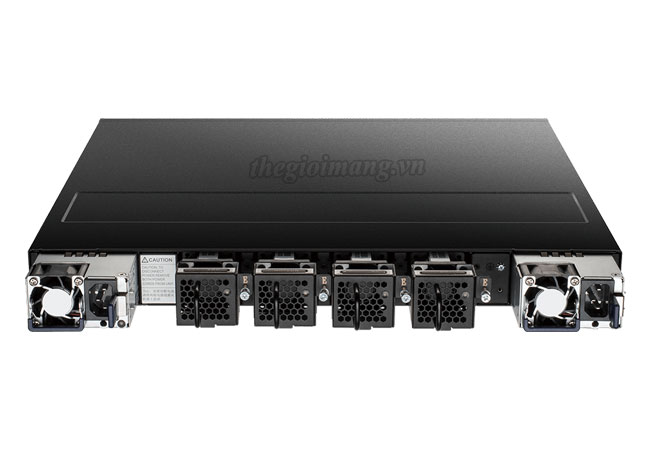

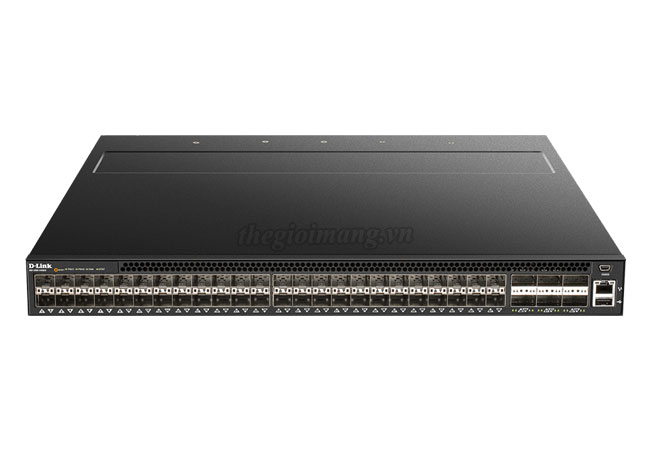

Thiết bị chuyển mạch Switch Dlink DQS-5000-54SQ28
| Model | DQS-5000-54SQ28 |
| General | |
| Interfaces | • 48 x 25G SFP28 ports • 6 x 100G QSFP28 ports • 1 x USB 2.0 port |
| Console Port | • 1 x mini-USB console port |
| OOB Management Port | • 1 x 10/100/1000BASE-T RJ-45 port |
| Performance | |
| Switching Capacity | • 3.6 Tbps |
| Max. Forwarding Rate | • 2,380 Mpps (2.380 Bpps) |
| Packet Buffer Memory | • 16 MB |
| MAC Address Table | • 40K |
| Physical | |
| Power Input | • 1+1 redundant power supply design • Input: 100 to 240 V AC, 50/60 Hz |
| Maximum Power Consumption | • 395 W |
| Heat Dissipation (Max.) | • 1347.74 BTU/hr |
| Fans | • 4 x fans |
| Acoustics | • Max: 72.3 dB • Min: 58.6 dB |
| Dimensions (W x D x H) | • 440 x 406 x 44 mm (17.32 x 16 x 1.73 inch) |
| Weight | • 9 kg (19.8 lbs) |
| Operating Temperature | • 0 to 45 ºC (32 to 113 ºF) |
| Storage Temperature | • -40 to 70 ºC (-40 to 158 ºF) |
| Operating Humidity | • 5% to 95% RH, non-condensing |
| Storage Humidity | • 5% to 95% RH, non-condensing |
| MTBF | • 205,500 hours |
| Certifications | |
| Safety | • cULus • CCC • BSMI • CB • CE |
| EMI/EMC | • FCC/IC • CCC • CB • CE • BSMI |
Tuỳ chọn license và modular cho DQS-5000-54SQ28
| DQS-5K-54SQ28-DC-LIC | DLMS license to activate D-Link OS on DQS-5000-54SQ28 data center switch |
| DXS-PWR550AC/F | 550 W AC modular power supply with front-to-back airflow |
| DXS-PWR550AC/B | 550 W AC modular power supply with back-to-front airflow |
| DXS-PWR800DC/F | 800 W DC modular power supply with front-to-back airflow |
| DXS-PWR800DC/B | 800 W DC modular power supply with back-to-front airflow |
| DXS-FAN5K/F | 5000 Series fan module with front-to-back airflow |
| DXS-FAN5K/B | 5000 Series fan module with back-to-front airflow |
DQS-5000-54SQ28/AF : 48-port 25G SFP28, 6-port 100G QSFP28 interfaces data center switch with 2 front-to-back AC PSUs, 4 front-to-back fan modules
DQS-5000-54SQ28/AB : 48-port 25G SFP28, 6-port 100G QSFP28 interfaces data center switch with 2 back-to-front AC PSUs, 4 back-to-front fan modules
DQS-5000-54SQ28/UF : 48-port 25G SFP28, 6-port 100G QSFP28 interfaces data center switch with 2 front-to-back DC PSUs, 4 front-to-back fan modules
DQS-5000-54SQ28/UB : 48-port 25G SFP28, 6-port 100G QSFP28 interfaces data center switch with 2 back-to-front DC PSUs, 4 back-to-front fan modules
