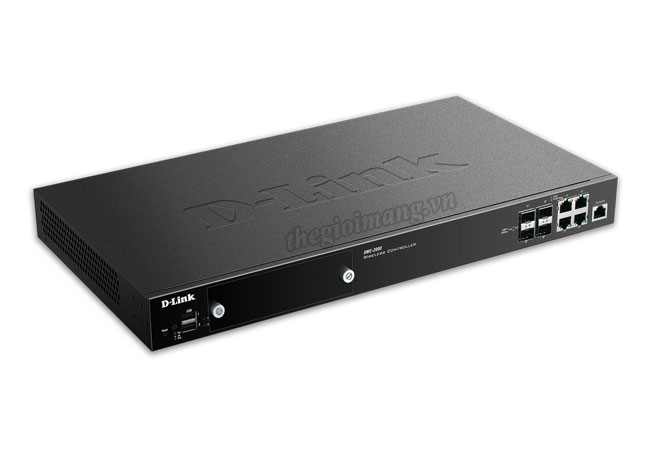

Thiết bị Dlink Unified Wireless Controller DWC-2000
| Model | DWC-2000 |
| Interface | |
| Ports | • 4 x 10/100/1000 Mbps RJ-45 ports • 2 x USB 2.0 ports • 4 x 100/1000 Mbps SFP combo ports • 1 x 10/100/1000 Mbps console port |
| Port Standards & Functions | • IEEE 802.3 Ethernet • IEEE 802.3u 100BASE-TX/FX Fast Ethernet • IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
| Maximum Access Points per Unit | • 64 (default) • 2561(upgraded) |
| Maximum Access Points per Cluster | • 256 (default) • 1,0241 (upgraded) |
| Concurrent Captive Portal Authentication Users | • 2048 |
| Physical/Environmental | |
| LED Indicators | • Speed (per 10/100/1000 Mbps port) |
| Dimensions (W x D x H) | • 440 x 310 x 44 mm (17.3 x 12.2 x 1.73 in) |
| Power Supply | • 100-240 V AC, 50-60 Hz internal power supply |
| Max. Power Consumption | • 26.95 W |
| Temperature | • Operating: 0 to 40 °C (32 to 104 °F) • Storage: -20 to 70 °C (-4 to 158 °F) |
| Operating Humidity | • 5% to 95%, non-condensing |
| Software | |
| VLAN | • VLAN group • Up to 255 entries • Subnet-based VLAN • 802.1q VLAN tagging • Port-based VLAN |
| Roaming | • Fast roaming • Intra/inter-subnet roaming • Intra/inter-controller roaming |
| Security | • Wireless security • WEP • Dynamic WEP • WPA personal/enterprise • WPA 2 personal/enterprise • LAN security • 802.1x port-based access control and guest VLAN • Wireless Intrusion Detection System (WIDS) • Rogue and valid AP classification • Rogue AP mitigation • Authentication • Captive portal • MAC authentication |
| Management | • Web-based GUI • HTTP • SNMP v1/v2c/v3 |
| Access Point Management | • AP discovery & control • Layer 2 • Layer 3 • AP monitoring • Managed AP • Rogue AP • Authentication Fail AP • Standalone AP • Client monitoring • Authenticated client • Rogue client • Authentication fail client • Ad-hoc client • Centralized RF/security policy management |
| User Account Management | • Permanent account authentication method • Local database • External RADIUS • External POP3 • External LDAP • Payment gateways • Authorize.net • Paypal • Temporary account authentication method • Local database • Temporary account creation • Single or batch account generation by system with customized active or usage expired time |
| Compatible D-Link Wireless Access Points | |
| DWL-8620AP/ DWL-8620APE/ DWL-6620APS | 802.11a/g/n/ac Wave 2 Unified Concurrent Dual-band Access Point |
| DWL-7620AP | 802.11a/g/n/ac Wave 2 Unified Concurrent Tri-band Access Point |
| DWL-8710AP | 802.11a/g/n/ac Unified Concurrent Dual-band Outdoor Access Point |
| DWL-8610AP | 802.11a/g/n/ac Unified Concurrent Dual-band Access Point |
| DWL-6700AP | 802.11a/g/n Unified Concurrent Dual-band Outdoor Access Point |
| DWL-6610AP/ DWL-6610APB1/ DWL-6610APE | 802.11a/g/n/ac Unified Concurrent Dual-band Access Point |
| DWL-3610AP | 802.11a/g/n/ac Unified Selectable Dual-band Access Point |
| DWL-8600AP/ DWL-6600AP | 802.11a/g/n Unified Concurrent Dual-band Access Point |
| DWL-3600AP/ DWL-2600AP | 802.11g/n Unified Access Point |
Tuỳ chọn License cho DWC-2000
| DWC-2000-AP128-LIC | License for DWC-2000 supporting additional 128 unified APs |
| DWC-2000-AP32-LIC | License for DWC-2000 supporting additional 32 unified APs |
| DWC-2000-AP64-LIC | License for DWC-2000 supporting additional 64 unified APs |
