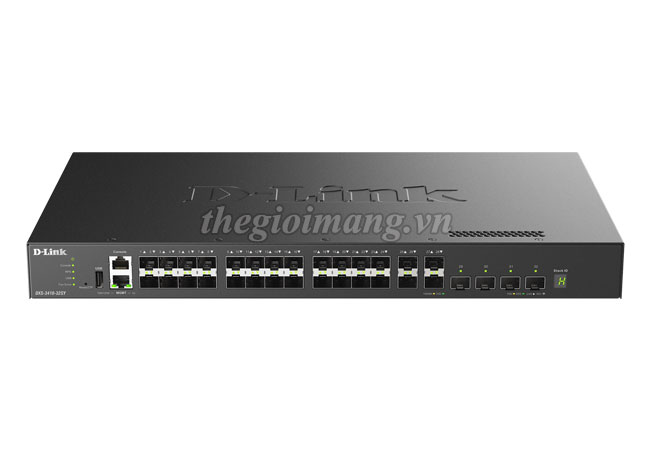

Bộ chuyển mạch quản lý 10 Gigabit Layer 3 D-Link DXS-3410-32SY
D-Link DXS-3410-32SY là Bộ chuyển mạch được quản lý có thể xếp chồng Lớp 3 10G của D-Link. Dòng DXS-3410 được trang bị các tùy chọn kết nối Multi-Gigabit và SFP+/SFP28. Được thiết kế cho các ứng dụng doanh nghiệp, hỗ trợ nguồn điện dự phòng để đảm bảo hoạt động liên tục. Ngoài ra, DXS-3410 còn hỗ trợ các tính năng thiết yếu để tăng cường khả năng phục hồi của mạng, bao gồm 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), Broadcast Storm Control, Chuyển mạch bảo vệ vòng Ethernet G.8032 (ERPS), Link Aggregation. Phần mềm cung cấp các tính năng L2 và L3 mạnh mẽ để đáp ứng các yêu cầu của các ứng dụng khác nhau, cho phép xây dựng hệ thống mạng đáng tin cậy.
Đặc điểm nổi bật của D-Link DXS-3410 Series
Thông số kỹ thuật
Model | DXS-3410-32SY |
Interfaces | |
Ports | • 28 x 10G SFP+ ports • 4 x 10/25G SFP28 ports |
Optional Redundant Power Supply | • DPS-500A • DPS-500DC |
Console Port | • RJ-45 port for out-of-band CLI management |
Management Port | • 10/100/1000BASE-T RJ-45 port for out-of-band IP management |
Stacking Ports | • 4 |
USB Ports | • 1 x USB 2.0 Type A port |
Performance | |
Switching Capacity | • 760 Gbps |
64-Byte Packet Forwarding Rate | • 565.44 Mpps |
Packet Buffer Memory | • 4 MB |
Physical | |
MTBF (Hours) | • 437,675.04 hours |
Acoustics | • Max: 53.3 dB • Min: 24.8 dB |
Heat Dissipation | • 354.86 BTU/h |
Power Input | • 100 to 240 VAC, 50 to 60 Hz |
Max Power Consumption | • Max.: 104.0 W • Standby: 29.3 W |
Dimensions (W x D x H) | • 441.0 x 250 x 44.0 mm |
Weight | • 3.88 kg |
Ventilation | • 3 x Smart fans |
Operation Temperature | • 0 to 50 ˚C |
Storage Temperature | • -40 to 70 ˚C |
Operating Humidity | • 10% to 90% RH |
Storage Humidity | • 5% to 90% RH |
Emission (EMI) | • FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI |
Safety | • CB, cUL, BSMI |
Software Features | |
Stackability | • Physical stacking • Up to 9 units per stack • Up to 200 Gbps stacking bandwidth • Ring/chain topology support • Virtual stacking • D-Link Single IP Management (SIM) • Up to 32 units per virtual stack |
L2 Features | • MAC Address Table: 32K entries • Flow Control • 802.3x Flow Control • HOL Blocking Prevention • Jumbo Frames up to 10 Kbytes • 802.1AX/802.3ad Link Aggregation • Max. 32 groups per device, 8 ports per group • Spanning Tree Protocols • 802.1D STP • 802.1w RSTP • 802.1s MSTP • BPDU Filtering • Root Guard • Loop Guard • Loopback Detection • Port Mirroring • Supports One-to-One, Many-to-One • Supports Mirroring for both Tx/Rx • Supports 4 mirroring groups • Flow mirroring • Supports Mirroring for Tx/Rx • VLAN Mirroring • RSPAN • L2 Protocol Tunneling • Ethernet Ring Protection Switching (ERPS) v1/v2 • Loopback Detection (LBD) • iSCSI Awareness • Multi-Chassis Link Aggregation Group (MLAG)1 |
L3 Features | • IPv4 ARP Entries: 16128 • 512 Static ARP • IPv6 ND Entries: 7680 • 256 Static ND Entries • IP Interface • Supports 256 interfaces • Gratuitous ARP • Loopback Interface • Proxy ARP • Support local ARP proxy • VRRP v2/v3 • IP Helper |
L3 Routing | • Supports 12K hardware routing entries shared by IPv4/IPv6 • 1 entry consumed by each IPv4 route • 2 entries consumed by each IPv6 route • Supports up to 16K IPv4 / 8K IPv6 hardware L3 forwarding entries • 1 entry consumed by each IPv4 route • 2 entries consumed by each IPv6 route • IPv4/IPv6 Static Route • Max. 256 IPv4 entries • Max. 128 IPv6 entries • Support Equal-Cost Multi-Path Route (ECMP) • IPv4/IPv6 Default Route • PBR (Policy-based Route) • Null Route • Route Preference • Route Redistribution • RIPv1/v2/ng • OSPF • OSPF v2/v3 • OSPF passive interface • Stub/NSSA area • Support Equal-Cost Multi-Path Route (ECMP) • Text/MD5 |
DXS-3410-32SY : 28 x SFP+ ports, and 4 x 10/25G SFP28 ports 10G L3 Stackable Managed Switch
Data sheet D-Link DXS-3410 Series 10G Layer 3 Stackable Managed Switches
