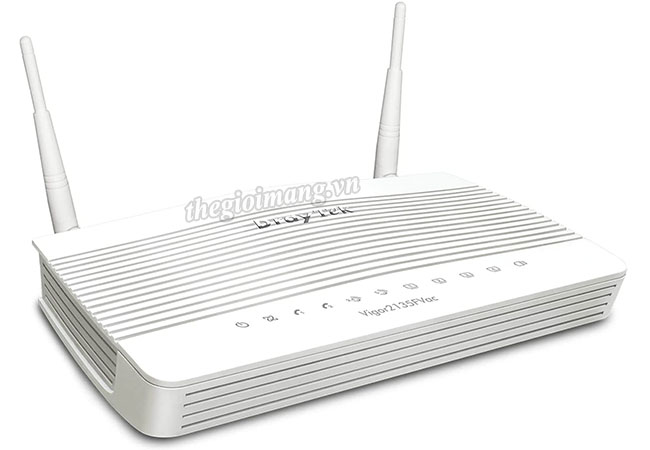

Product	Vigor2135FVac

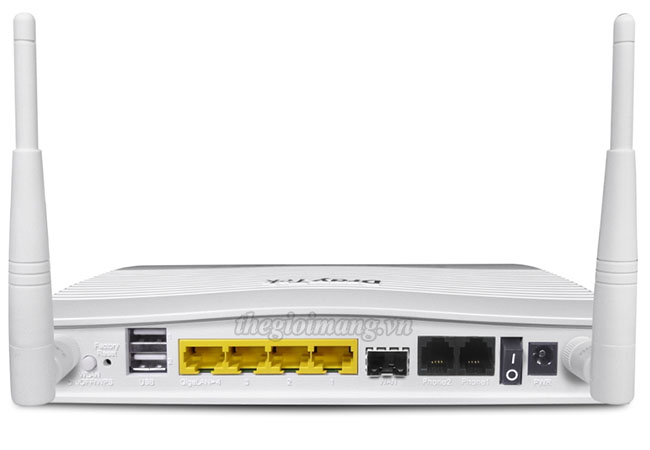

Interface
WAN Port	1 x 100/1000M SFP Slot
LAN Port	4 x Gigabit Ethernet
VoIP	2 x FXS, RJ-11
USB Port	2 x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
Wi-Fi Antenna	2x External Dipole, Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz
2.4G WLAN	802.11n 2x2 MIMO, Up to 400Mbps Link Rate
5G WLAN	802.11ac Wave 2 2x2 MU-MIMO, Up to 867Mbps Link Rate
Performance
NAT Throughput	600 Mbps
NAT Throughput w/ Hardware Acceleration	940 Mbps
IPsec VPN Performance	150 Mbps (AES 256 bits)
SSL VPN Performance	100 Mbps
Max. Number of NAT Sessions	50.000
Max. Concurrent VPN Tunnels	2
Physical
Power Supply	DC 12V @ 1-2A
Max. Power Consumption	18 watts
Dimension	207mm x 131mm x 42mm
Weight	<440g
Operating Temperature	0 to 45°C
Storage Temperature	-25 to 70°C
Operating Humidity (non-condensing)	10 to 90%

Data sheet DrayTek Vigor2135 Series
Internet Connection
IPv4	PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6	PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging	✔
Multi-VLAN/PVC	✔
3G/4G/LTE WAN with USB modem	✔
WAN Failover	✔
Connection Detection	ARP, Ping, Strict ARP
WAN Data Budget	✔
Dynamic DNS	✔
DrayDDNS	✔
LAN Management
VLAN	802.1q Tag-based, Port-based
Max. Number of VLAN	8
Number of LAN Subnet	4
DHCP Server	Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Wired 802.1x Authentication	✔
Port Mirroring	✔
Local DNS Server	✔
Conditional DNS Forwarding	✔
Hotspots Web Portal	✔
Hotspot Authentication	Click-Through, Social Login, SMS PIN, Mail PIN, RADIUS, External Portal Server
Networking
Routing	IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2
Policy-based Routing	Protocol, IP Address, Port, Domain, Country
DNS Security (DNSSEC)	✔
IGMP	IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
SMB File Sharing	✔ (Requires external storage)
VPN
LAN-to-LAN	✔
Teleworker-to-LAN	✔
Protocols	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN
User Authentication	Local, RADIUS, mOTP
IKE Authentication	Pre-Shared Key, X.509
IPsec Authentication	SHA-1, SHA-256
Encryption	MPPE, DES, 3DES, AES
Single-Armed VPN	✔
NAT-Traversal (NAT-T)	✔
DrayTek VPN Matcher	✔
Firewall & Content Filtering
NAT	Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway)	SIP, RTSP, FTP, H.323
VPN Pass-Through	PPTP, L2TP, IPsec
IP-based Firewall Policy	✔
Content Filtering	Application, URL, DNS Keyword, Web Features, Web Category* (subscription required)
DoS Attack Defense	✔
Spoofing Defense	✔
Bandwidth Management
IP-based Bandwidth Limit	✔
IP-based Session Limit	✔
QoS (Quality of Service)	TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization	✔
APP QoS	✔
Wireless LAN
Number of SSID	4 per radio band
Security Mode	OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
Authentication	Pre-Shared Key, 802.1X
WPS	PIN, PBC
WDS	Repeater (5GHz Only)
Access Control	Access List, Client Isolation, Hide SSID, WLAN Scheduling
AirTime Fairness	✔
Band Steering	✔
MU-MIMO	5GHz Only
WMM	✔
VoIP Gateway
Protocol	SIP, RTP/RTCP, ZRTP
SIP Registrars	6
Dial Plan	Phone Book, Digit Map, Call Barring, Regional
Call Features	Call Waiting, Call Transfer, Scheduled DND, Hotline
Voice Codec	G.711 A/u law, G.726, G.729 A/B
Caller ID	FSK_ETSI, FSK_BELLCORE, DTMF
Management
Local Service	HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config File Export & Import	✔
Config File Compatibility	Vigor2132 Series, Vigor2133 Series
Firmware Upgrade	TFTP, HTTP, TR-069
2-Level Administration Privilege	✔
Access Control	Access List, Brute Force Protection
Notification Alert	SMS, E-mail
Netflow	v5, v9, IPFIX
SNMP	v1, v2c, v3
Syslog	✔
Managed by VigorACS	✔
Central AP Management	2 VigorAP
Mesh Network	7 VigorSwitch
