| Product |

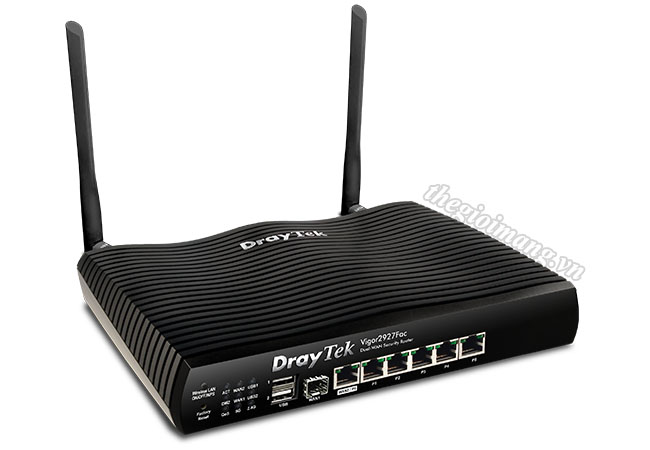

Vigor2927Fac |
| Phần cứng |
| Port |
- 1 x SFP 100/1000Mbps WAN
- 1 x GbE WAN
- 5 x GbE LAN
- 2 x USB 2.0
|
| Nguồn |
|
| Antenna |
|
| Nút |
|
| Kích thước |
|
| Trọng lượng |
|
| Không dây |
| Chuẩn tương thích |
- 802.11n 2x2 MIMO 400 Mbps
- 802.11ac 2x2 MIMO 867 Mbps
|
| Băng tần |
|
| Bảo mật không dây |
- OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
|
| Phầm mềm |
| WAN |
- Ethernet WAN
- DHCP Client
- Static IP
- PPPoE
- PPTP / L2TP (WAN-2 only)
- 802.1q Multi-VLAN Tagging
- IPv6 Connection Type
- Dual Stack: PPP, DHCPv6 Client, Static IPv6
- Tunnel Mode: TSPC, AICCU, 6rd, 6in4 Static Tunnel
- USB WAN
- PPP(3G) / CDC driver(3G) / support IPv6 protocol :TSPC/AICCU
Dual WAN
- Load-Balance / Route Policy
- Outbound policy-based load-balance
- WAN Connection Failover
- Multiple-VLAN
|
| Network |
- Hotspot Web Portal
- Packet Forwarding Acceleration
- DHCP client/relay/server
- DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
- IGMP v2/v3
- LAN DNS /DNS Forwarding
- Dynamic DNS
- NTP Client
- RADIUS /TACACS+ Client
- Internal RADIUS Server
- Active Directory /LDAP compatible (client)
- DNS Cache/Proxy and LAN DNS
- UPnP 50 sessions
- Wake on LAN
- Bonjour service
- Routing Protocol:
- Static Routing
- RIP v1/v2
- BGP
- Triple-Play Application
- 8 x Multiple Subnet LAN
|
| Management |
- Web-based User Interface (HTTP/HTTPS)
- CLI (Command Line Interface, Telnet/SSH)
- Administration Access Control
- Configuration Backup/Restore
- Built-in Diagnostic Function
- Firmware Upgrade via TFTP/HTTP/TR-069
- Logging via Syslog
- SNMP v2/v3
- Support SMS/E-mail Alert
- Management Session Time Out
- Two-level Management (Admin/User Mode)
- External device detection (master mode)
- TR-069/TR-104
- Support Multiple-Firmware Upgrade Utility (MFUU)
- Dashboard
|
| Chất lượng dịch vụ |
- QoS:
- Guarantee Bandwidth for V oIP (VoIP QoS)
- Class-based Bandwidth Guarantee by User-defined Traffic Categories
- DiffServ Code Point Classifying
- 4-level Priority for Each Direction (Inbound/Outbound)
- Bandwidth Borrowed
- Bandwidth/Session Limitation
- Smart Bandwidth Limitation
- Config by IP range
- Layer-3 (TOS/DSCP) QoS
- Layer-2 (802.1p) QoS
- WAN budget
|
| VPN |
- Up to 50 VPN Tunnels (including 25 SSL VPN tunnels)
- VPN Wizard
- VPN Trunk with Backup / Load Balance
- Protocol : PPTP, IPsec, L2TP, L2TP over IPsec, GRE over IPSec
- Encryption : MPPE and hardware-based AES/DES/3DES
- Authentication : SHA
- IKE Authentication : Pre-shared Key and Digital Signature (X.509)
- LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)
- DHCP over IPsec
- IPsec NAT-traversal (NAT-T)
- Dead Peer Detection (DPD)
- VPN Pass-through
- mOTP
|
| Tính năng nâng cao |
Firewall
- DMZ Host：Port-redirection, Open Port, Port Triggering
- User-based / Rule-based Firewall
- Object-based Firewall：SPI (Stateful Packet Inspection) (Flow Track)
- DoS Prevention
- Time Schedule Control
- DNS Filter Enhancement
- User Management
- Firewall Wizard Mode and Advanced Mode
CSM (Content Security Management)
- APP Enforcement
- Support APPE Signature Upgrade by license
- URL Content Filter
- Access Control : URL Keyword Blocking (White/Black List)
- Web Feature : Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
- Web Content Filter (support Cyren and BPjM)
- DNS Filter
Central Device Management
- AP Management
- VPN Management
- Switch Management
- External Devices
|
| USB |
- File System
- Support FAT32 File System
- Support FTP Function for File Sharing
- 3.5G (HSDPA) and 4G (LTE) as WAN3/WAN4 by using USB dongle (can support Dual USB WAN)
- USB Device Status (disk/modem/printer/sensor)
- Support USB Temperature Sensor
- Support file sharing (DrayTek’s own SMB protocol stack)
|
| Thông số khác |
| Môi trường |
- Temperature Operating : 0°C ~ 45°C
- Temperature Storage : -25°C ~ 70°C
- Humidity 10% ~ 90% ( non-condensing )
|
