Bộ định tuyến và cân bằng tải DrayTek Vigor3912S được thiết kế cho các mạng đòi hỏi băng thông cao, có CPU Quad-Core 2GHz để có tốc độ kết nối nhanh, ngay cả khi có nhiều thiết bị được kết nối. Được trang bị 8 giao diện WAN (bao gồm 2x 10G SFP+, 2x 2.5G Ethernet và 4x 1G Ethernet) à 4 giao diện LAN Gigabit RJ45 cố định. Cổng 1 đến cổng 8 có thể định cấu hình độc lập cho WAN hoặc LAN để mang lại sự linh hoạt và tối ưu hóa hiệu suất của bộ định tuyến.

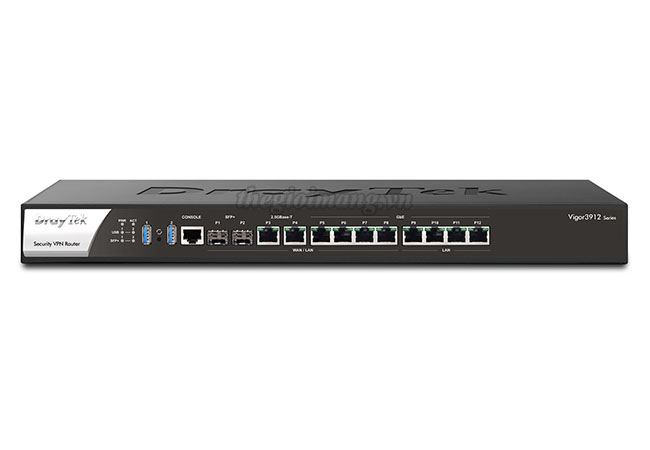

Vigor3912S

Vigor3912S có sẵn bộ lưu trữ SSD 256GB bên trong, hỗ trợ các ứng dụng Linux với Docker. Suricata và VigorConnect được hỗ trợ.

Thông số kỹ thuật

Models	Vigor3912S
Interface
WAN/LAN Switchable Port	2 x 10 Gigabit SFP+ 2 x 2.5 GbE RJ-45 4 x GbE RJ-45
Fixed LAN Port	4 x GbE RJ-45
Console Port	1 x RJ-45
USB Port	2 x USB3.0
Performance
NAT Session	1000K
Max. NAT with Software Acceleration (single-directional) (Mbps)	9450
Max. NAT with Software Acceleration (bi-directional) (Mbps)	15600
Physical
Power Input	AC 100~240V @ 0.5-0.7A
Max. Power Consumption (watts)	35
Memory	8GB DDR4 + 256GB SSD
Dimension (mm)	443 x 285 x 45
Operating Temperature	0 to 45°C
Storage Temperature	-10 to 55°C
Operating Humidity (non-condensing)	10 to 90%

Datasheet Draytek Vigor3912S

Tính năng kỹ thuật

Internet Connection
IPv4	PPPoE, DHCP, Static IP
IPv6	PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging	●
Multi-VLAN/PVC	●
Failover	●
Load Balancing	IP-based, Session-based
WAN Active on Demand	Link Failure, Traffic Threshold
Connection Detection	PPP, Ping, ARP
WAN Data Budget	●
Dynamic DNS	●
DrayDDNS	●
LAN Management
LAN Subnet	100
VLAN	802.1q Tag-based, Port-based
Max. Number of VLAN	100
DHCP Server	Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias	●
IP Pool Count	4000
PPPoE Server	●
Port Mirroring	●
Local DNS Server	●
Conditional DNS Forwarding	●
Hotspot Web Portal	4
Hotspot Authentication	Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
VPN
LAN-to-LAN	●
Teleworker-to-LAN	●
Protocols	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IPsec-XAuth, OpenVPN, Wireguard
Max. VPN Tunnels	500
Max. OpenVPN + SSL VPN	200
User Authentication	Local, RADIUS, LDAP, TACACS+, mOTP, TOTP
IKE Authentication	Pre-Shared Key, X.509, XAuth, EAP
IPsec Authentication	MD5, SHA-1, SHA-256, SHA-512
Encryption	MPPE, DES, 3DES, AES
VPN Trunk (Redundancy)	Load Balancing, Failover
Single-Armed VPN	●
NAT-Traversal (NAT-T)	●
VPN from LAN	●
VPN Isolation	●
VPN Packet Capture	●
VPN 2FA Authentication for AD/LDAP	●
VPN Matcher	●
Networking
Routing	IPv4 Static Route, IPv6 Static Route, Policy Route, Inter-VLAN Route, Fast Routing, RIP v1/v2, OSPFv2, BGP
Policy-based Routing	Protocol, IP Address, Port, Domain, Country
Smart Action	●
High Availability	●
DNS Security (DNSSEC)	●
IGMP	IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
Local RADIUS server	●
Linux Applications
Suricata	●
VigorConnect	●
Management
Local Service	HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config Backup/Restore	●
Firmware Upgrade	TFTP, HTTP, TR-069
2-Level Administration Privilege	●
Access Control	Access List, Brute Force Protection
Syslog	●
Notification Alert	SMS, E-mail
SNMP	v1, v2c, v3
VigorACS Management	●
AP Management (APM)	50
Switch Management (SWM	30
Bandwidth Management
IP-based Bandwidth Limit	●
IP-based Session Limit	●
QoS (Quality of Service)	TOS, DSCP, 802.1p, IP Address, Service Type
VoIP Prioritization	●
APP QoS	●
Firewall & Content Filtering
NAT	Port Redirection, Open Ports, Port Triggering, Port Knocking, Fast NAT DMZ Host, UPnP, Server Load Balance
ALG	SIP, RTSP, FTP, H.323
VPN Pass-Through	PPTP, L2TP, IPsec
IP-based Firewall Policy	●
Content Filtering	APP, URL Keyword, DNS Keyword, Web Features, Web Category* (*subscription required)
DoS Attack Defense	●
Spoofing Defense	●
