Models	EWS850-FIT
Standards	IEEE 802.11b/g/n/ax on 2.4GHz IEEE802.11a/n/ac/ax on 5GHz
Processor	Qualcomm® Quad-Core ARM Cortex A53s @ 1.8GHz CPU
Antenna	Four (4) External 5 dBi Dual-Concurrent Omni-Direc-tional Antenna SMA-Type
Physical Interface	1 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port
Power Source	Power-over-Ethernet: 802.3af/at Proprietary 48V – 54V IEEE 802.11e Compliant Source Active Ethernet (PoE)
Maximum Power Consumption	15.9 W
Surge Protection	1KV
ESD Protection	Contact: 4KV; Air: 8 KV
WIRELESS & RADIO
Operation Modes	AP, Mesh
Transmit Power	2.4GHz: 23dBm 5GHz: 25dBm
Radio Chains/Spatial Stream	2x2:2
Multiple BSSID	8 SSIDs for both 2.4GHz and 5GHz radios
Wireless Security	WPA3-PSK (SAE) WPA3 Enterprise WPA2 Enterprise (AES) WPA2 AES-PSK OWE Hide SSID in Beacons MAC Address Filtering, Up to 32 MACs per SSID Wireless STA (Client) Connected List SSH Tunnel Client Isolation
ENVIRONMENT & PHYSICAL
Dimensions (W x L x H) ● Device ● Packing	4.07 x 7.48 x 2.07" (124 x 190 x 52.5mm) 9.21 x 11.18 x 5.67" (223 x 284 x 144mm)
Weight ● Device ● Packing	1.54 lbs (0.7 kg) 3.96 lbs. (1.8 kg)
Temperature Range	Operating: -4º~140ºF/-20ºC~60ºC Storage: -40Fº~176ºF/-40ºC~80ºC
Humidity (non-condensing)	Operating: 90% or less Storage: 90% or less
Waterproof & Dustproof	IP67-Rated Enclosure
Certifications	FCC, CE, IC

Data sheet EnGenius EWS850-FIT

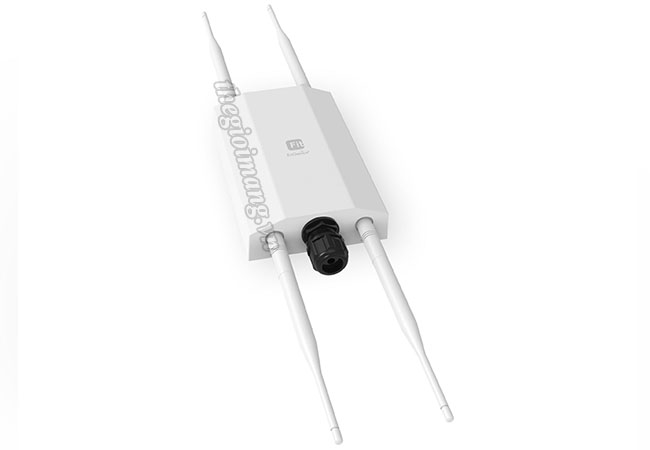

EWS850-FIT - EnGenius Fit Wi-Fi 6 2×2 Outdoor Wireless Access Point

Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 2x2 antenna.
Supports up to 1,200 Mbps in 5-GHz frequency band & 574 Mbps in 2.4-GHz frequency band.
IP67-Rated weatherproof & dustproof housing withstands harsh environments.
2.5 GigE PoE+ compatible port for easy placement where power outlets are scarce.
Manage your network Onsite or on-the-go through our FitXpress cloud-based mobile app or web portal.
FitController gives you greater control of your network using plug-n-play hardware with embedded network management software.
Setup in minutes with app-based step by step instructions
Quick-scan device register, remote monitoring, and troubleshooting.
Real-time system metrics, analytics, and remote configurations.
No access point licensing or subscription fees.
Uplink and downlink of OFDMA improves transmission to APs and client devices.
Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices.
Target wake time for power-saving of client & IoT devices.
BSS coloring for tagging packets with a “color” to differentiate between adjacent basic service sets.
Spatial reuse identifies color sets via BSS coloring & simultaneously transmits on the same channel, reducing transmission waiting time and contention.
GigE PoE-Compliance with 802.3af & 48V PoE input for flexible installation up-to 328 feet
Mesh wireless support simplifies setup, optimizes signals & self-heals
Four (4) (2x2) detachable 5dbi high-gain, 360° SMA-type antennas.
