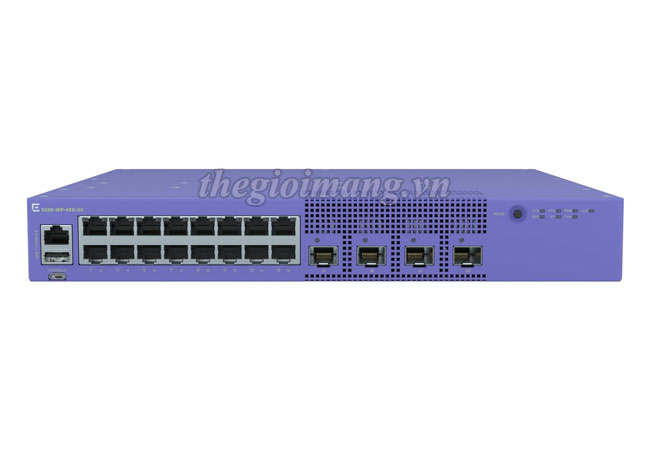

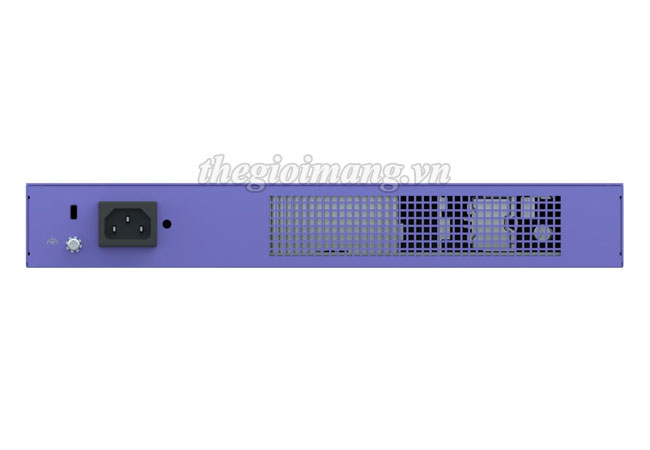

Extreme 5320-16P-4XE Universal Edge Switch :
Thiết bị chuyển mạch Switch Extreme 5320-16P-4XE
| Model | 5320-16P-4XE |
| Interfaces | 16 x 10/100/1000Base-T 802.3at (30W) ports • Full/Half-Duplex (autosensing) • MACsec-capable 4 x 1Gb SFP uplink ports (includes 2 x Stacking ports @ 10Gb) • Can be upgraded to 10Gb SFP+ via software license • MACsec-capable 1 x Serial console port (RJ-45) 1 x USB A ports for management or external USB flash 1 x USB Micro-B console port |
| Max Active 10/100/1000Mb ports | 16 |
| Max Active 1Gb/10Gb SFP/SFP+ ports | 4 |
| Max Active 10Gb Stacking ports | 2 |
| Aggregated Switch Bandwidth | 112 Gbps |
| Max Frame Forwarding Rate | 83.3 mpps |
| Software Scaling Values | 5320 with Switch Engine (EXOS) • MAC Table: 32,000 • IPv4 ARP Table: 16,000 • IPv4 Route Table: 12,000 (48-port models); 8,000 (16 and 24-port models) • IP Multicast Entries (S,G,V): 6,000 • IPv6 Neighbor Table: 6,000 • IPv6 Route Table: 6,000 (48-port models); 4,000 (16 and 24-port models) • ACLs (Ingress/Egress): 8,000/1,024 (48-port models); 8,000/512 (16 and 24-port models) • QoS Egress Queues per port: 8 • VLANs: 4,094 • Routed VLANs: 1533 (48-port models); 509 (16 and 24-port models) 5320 with Fabric Engine (VOSS) • MAC Table: 32,000 • IPv4 ARP Table: 15,000 (48-port models); 8,000 (16 and 24-port models) • IPv4 Route Table: 12,000 (48-port models); 8,000 (16 and 24-port models) • IP Multicast Entries (S,G,V): 4,000 (48-port models); 2,000 (16 and 24-port models) • IPv6 Neighbor Table: 8,000 • IPv6 Route Table: 6,000 (48-port models); 4,000 (16 and 24-port models) • ACLs (Ingress/Egress): 1,024/400 (48-port models); 1,024/190 (16 and 24-port models) • QoS Egress Queues per port: 8 • VLANs: 4,059 • IP Interfaces (Routed VLANs): 248 |
| Weights and Dimensions | |
| Weight | 3.0 kg |
| Physical Dimensions | 310 mm/43.6 mm/300 mm |
| Max PoE Power Budget | 185W |
| Minimum/Maximum Power Consumption and Heat Dissipation | |
| Minimum Power Consumption (Watts) | 17 |
| Minimum Heat Dissipation (BTU/hr) | 57 |
| Maximum Power Consumption (Watts) | 246 |
| Maximum Heat Dissipation (BTU/hr) | 208 |
| Operating Conditions | • Temp: 0° C to 50° C (32° F to 122° F) • Humidity: 10% to 95% relative humidity, non-condensing • Altitude: 0 to 3,000 meters (9,850 feet) • Shock (half sine) 30m/s2 (3G), 11ms, 60 shocks • Random vibration: 3 to 500 Hz at 1.5 G rms |
5320-16P-4XE : 5320 Universal Switch with 16 x 10/100/1000BASE-T full/half duplex 802.3at 30W PoE ports, 4 x 1Gb SFP uplink ports upgradeable to 10Gb SFP+ (includes 2 x Stacking ports @10Gb), 1 internal fixed AC PSU, fixed fan module (fan-off mode up to 35C), 2-post rack-mount kit, Base software license, includes 1-year ExtremeCloud IQ Pilot Subscription.
Data sheet Extreme 5320 Series Universal Edge Switch Platform
