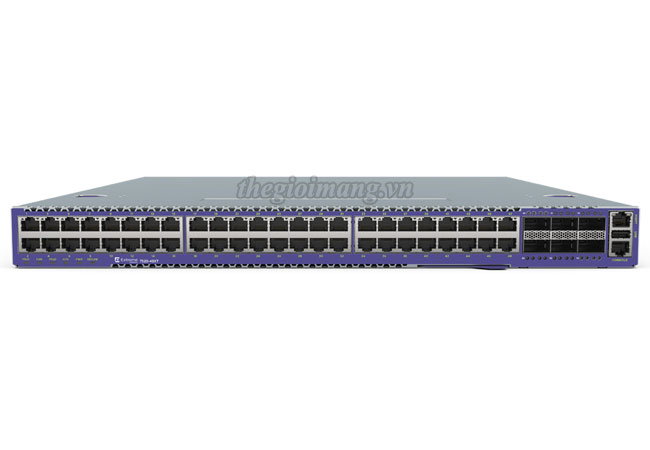

Extreme 7520-48XT-6C-AC-R Universal Aggregation/Core Switch :
Thiết bị chuyển mạch Switch Extreme 7520-48XT-6C-AC-R
| Model | 7520-48XT-6C-AC-R |
| Ports | • 48 1/10GbE 10GBaseT ports • 6 40/100GbE QSFP28 ports • 1x Serial console port RJ-45 • 1x 10/100/1000BASE-T out -of-band management port • USB Type A storage port |
| Power Supplies | • Modular 800W AC power supply (up to two PSUs) • Back to Front airflow |
| Fan Modules | • 6 fan modules • Back-Front airflow |
| Dimensions | • 44.0cm x 53.2cm x 4.3cm |
| Weight | • 7.41 kg no PSU / 9.47 kg with two AC PSUs |
| Performance | • Line rate 2.16 Tbps Switching Capacity (1.08Tbps ingress, 1.08Tbps egress) • Average Latency: 2,400 ns • Forwarding rate: 1000 Mpps |
| CPU Memory | • 8-core Processor • 16GB DDR4 ECC memory • 128GB SSD memory |
| Packet Buffers | • 32MB |
| Environmental Operating Conditions | AC, one fan failed, back-to-front: • 0°C (32°F) to 45°C (113°F) at sea level; • 0°C (32°F) to 40°C (104°F) up to 3000 m (10,000 ft) |
| 7520 Software Scaling with Switch Engine | • MAC Table: 294,000 • IPv4 ARP Table: 172,000 • IPv4 Route Table: 294,000 IP Multicast Entries (S,G,V): 110,000 • IPv6 Neighbor Table: 78,000 • IPv6 Route Table: 218,000 ACLs (Ingress/Egress): 38,864/2,048 • QoS Egress Queues per port: 8 • VLANs: 4,094 • Routed VLANs: 4,094 • One Policy Scaling • Policy Profiles: 63 • Unique Permit/Deny Rules per switch: 16,312 |
7520-48XT-6C-AC-R : Extreme 7520-48XT Switch with two AC back-to-front airflow power supplies, six back-to-front airflow fans, one 4-post rack mount kit. Supports 48 x 1G/10G copper ports and 6 x 40G/100G fiber ports.
Data sheet Extreme 7520 Universal Aggregation/Core Switch Platform
