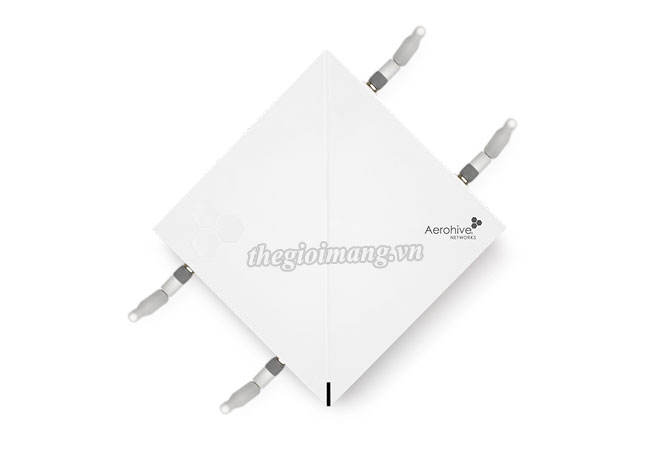

Thiết bị phát sóng Wifi Extreme AP122X
| Model | AP122X |
| Interfaces | • Autosensing 10/100/1000 Base-T Ethernet PoE (Power over Ethernet 802.3af) Port • RJ-45 console port • Standard USB port |
| Radio Specifications | 802.11n • 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • Rates (Mbps): MCS0 - MCS15 (6.5Mbps - 300Mbps) • 2x2 Multiple-In, Multiple-Out (MIMO) Radio 802.11ac • 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 867Mbps), NSS = 1-2. • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80 support • TxBF ( Transmit Beamforming) |
| Power Specifications | • IEEE 802.3af PoE Power |
| Power Options | • Power Draw: Typical 10.5W, Max 12.9W • 802.3af / 802.3at (PoE/PoE+) |
| Physical | Dimensions: • LxWxH 171x171x44.5 mm (6.75x6.75x1.75in). w/o mounting brackets • Weight: 1.13 lb (0.51 kg) Shipping Physical Dimensions: • WxDxH: 8” x 7” x 3” (194mm x 186mm x 70mm) • Weight: 1.54 lbs (0.7 Kg) |
| Antennas | • 2x external single band, 2.4-2.5GHz omnidirectional antennas (sold separately) • 2x external single band, 5.1-5.8GHz omnidirectional antennas (sold separately) • 1 x BLE internal antenna Antenna Gain: • 2.4GHz: 4 dBi • 5GHz: 4 dBi Max EIRP (dBm): • 2400 MHz to 2500 MHz: 27 dBm • 5250 MHz to 5350 MHz: 30 dBm • 5725 MHz to 5875 MHz :30 dBm |
| Mounting | • Desktop • Wall Mount • Ceiling Tile flush 15/16” • Ceiling Tile Recessed 15/16”, 3/8”, 9/16” sold as an accessory • Ceiling Tile Flush 3/8”, 9/16” sold as an accessory • Suspend Mount sold as an accessory • TPM chip for added security |
| Environmental | • Operating: 0 to +40°C, Storage: -40 to +70°C • Humidity: 95% |
AH-AP-122X-AC-W : AP122X Indoor, 2 radio 2x2:2 802.11a/b/g/n/ac Access Point, external antennas, 1 10/100/1000 Ethernet port, without power injector (Antenna sold separately).
