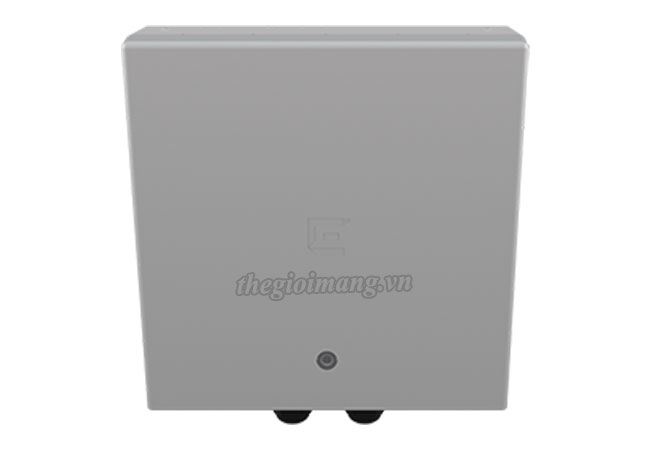

Extreme AP5050U (AP5050U-WW)

AP5050U-WW - Extreme AP5050U Wi-Fi 6E Tri-Radio Outdoor Access Point :

  • Tri Radio Wi-Fi (4x4:4), 2.4 GHz, 5GHz, 6GHz
  • Eth0 is 5/2.5/1GE with PoE
  • Eth1 is 2.5/1GE/100 with PSE 15.4W when 802.3bt on Eth0
  • Internal Omni antennas
  • IP67-Rated
  • BLE Radio Bluetooth Low Energy (BLE)
  • Cloud and On-Premises Management
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị Wi-Fi 6E Extreme AP5050U Outdoor Access Point

Model AP5050U-WW
Radio Specifications Max Users
• SSID per Radio/Total: 8/24
• Users per Radio/total: 512/1536
802.11n
• 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency
• 802.11n Modulation
• HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz)
• HT40 High-Throughput (HT) Support for 5 GHz
• A-MPDU and A-MSDU Frame Aggregation
• Rates (Mbps): MCS0 – MCS31 (6.5MBps - 600Mbps)
802.11ac
• 5.150–5.850 GHz Operating Frequency
• 802.11ac Modulation (256-QAM)
• 5G: 4x4 Multiple-In, Multiple-Out (MIMO) Radio
• 2.4G: 4x4 Multiple-In, Multiple-Out (MIMO) Radio
• Rates (Mbps): MCS0–MCS9 (6.5Mbps), 3466Mbps, NSS = 1-4.
• 4x4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio
• VHT20/VHT40/VHT80/VHT160
• TxBF (Transmit Beamforming)
802.11ax
• 2.4-2.5GHz, 5.50-5.850 and 5.925-7.125 GHz Operating Frequencies
• 802.11ax Modulation (1024-QAM)
• Dual-band OFDMA
• Rates (Mbps):
• 6G: HE0-HE11 (8 Mbps – 4800 Mbps)
• 5G: HE0-HE11 (8 Mbps – 4800 Mbps)
• 2.4G: HE0-HE11 (8Mbps – 1148 Mbps)
• 4x4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 6 GHz
• 4x4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 5 GHz
• 4x4:4 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 2.4 GHz
• HE20/HE40/HE80/HE160 support for 6 GHz
• HE20/HE40/HE80/HE160 support for 5 GHz
• HE20/HE40 support for 2.4 GHz
• DL SU-MIMO and MU-MIMO
• TxBF (Transmit Beamforming)
IoT Radio • Thread, Zigbee®, Bluetooth® 5.2 Low Energy, IEEE 802.15.4
GPS Radio • Support L1 frequency (1575.42 Mhz)
Interfaces • Eth0 is 5/2.5/1GE with Power over Ethernet (PoE)
• Eth1 is 2.5/1GE/100 with PoE power sourcing equipment (PSE) 15.4W when 802.3bt on Eth0
Power Options • Power Draw: 802.3at PoE: Typical 21W; Max: 25.5W (802.3at profile) w/o PoE out
• Power Draw: 802.3bt: PoE out enable
• Eth0 PoE 5Gbps Ethernet port RJ45
Physical Specifications • Dimensions: 28.6 cm x 25.4 cm x 7.cm
• Weight: 3.35kg
Security • Trusted Platform Module(TPM)
Environmental Specifications • Operating: -40°C to 60°C (-40°F to 140°F )
• Storage: -40°C to 70°C (-40°F to 158°F)
• Humidity: 0% to 95% (non-condensing)

AP5050D-WW : Outdoor Internal Directional Antenna Tri Radio Wi-Fi 6E AP (4x4:4), 2.4 GHz, 5GHz, 6GHz & Multirate Port, Directional Antennas: software selectable: 30° or 70° . Mounting sold separately. Domain: World SKU.

Data sheet Extreme AP5050U and AP5050D Wi-Fi 6E Tri-Radio IP67-Rated Outdoor Access Point
