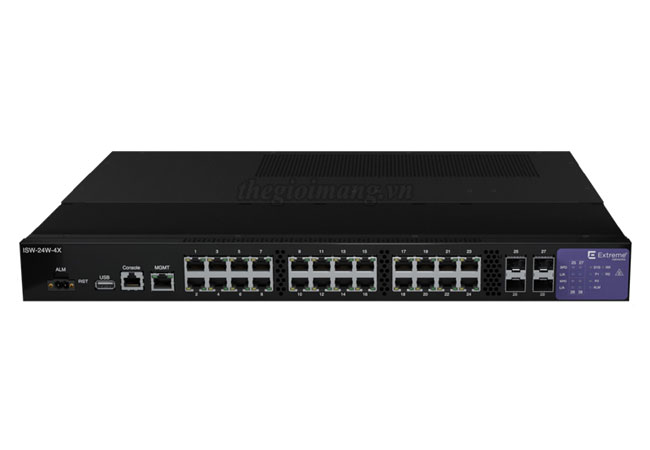

Extreme ISW-24W-4X Industrial Ethernet Switch :
Thiết bị chuyển mạch Switch Extreme ISW-24W-4X
Model | ISW-24W-4X |
Interfaces | • 24 x 10/100/1000BASE-T Hi PoE+ ports 802.3bt (90W) • 4 x 10GBASE-X SFP+ uplink ports • 1 x Serial Console Port (RJ45) • 1 x 10/100/1000BASE-T out-of-band management port • 1 x USB 2.0 • Dual DC power input • Rack mount |
Aggregate Bandwidth | • 128Gbs |
Forwarding Rate | • 95.2Mpps |
Software Scaling Values | |
VLANS | • 4K |
VLAN IDs | • 1-4094 |
MAC Table | • 32K |
ARP Table | • 2K |
IPv4 Route Table | • 64 |
IP Interfaces | • 20 |
Access Control Entries | • 256 |
IGMP Groups | • 1024 |
Port Mirroring Groups | • 7 |
Environmental | |
Operating Temperature | • -40°C to +75°C |
Mounting | • Rack Mount |
Power Supply | • Dual DC Input, External PSU |
Rated Input | • 46-57VDC, max. 15A (52-57V for IEEE 802.3bt) |
Qualified PSUs | • 240W • 480W |
Fans | • Fanless |
Dimensions (WxHxD) (mm) | • 440 x 43.5 x 381 |
ISW-24W-4X : 24 10/100/1000BASE-T 90W 802.3bt PoE ports, plus 4 10GBASE-X SFP+ ports dual DC power inputs, fanless, 1RU.
Data sheet Extreme ISW Series Industrial Ethernet Switches
