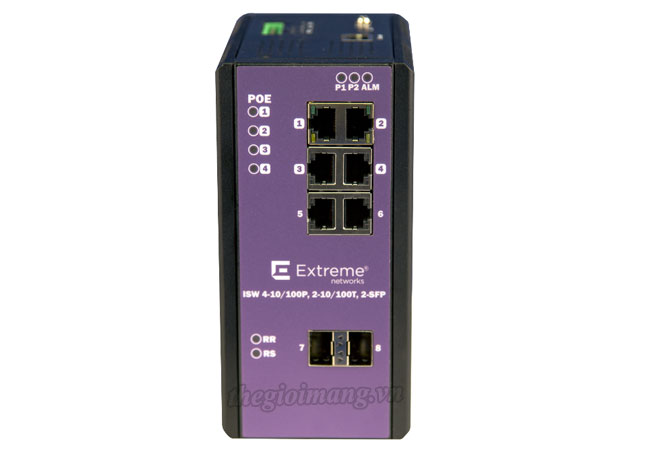

Thiết bị chuyển mạch Switch Extreme ISW 4-10/100P, 2-10/100T, 2-SFP
Model | ISW 4-10/100P, 2-10/100T, 2-SFP (16801) |
Port Counts | |
10/100 | • 2 |
10/100 PoE+ | • 4 |
SFP | • 2 |
Aggregate Bandwidth | • 5.3 Gbps |
Forwarding Rate | • 3.87 Mbps |
Operating Mode | • Store and forward, L2wire-speed/non-blocking switching engine • MAC Addresses - 8K • Jumbo Frames - 9K Bytes |
Copper RJ45 Ports | • IEEE 802.3af and IEEE 802.3at on POE enabled ports • MDI/MDIX Auto-Crossover • Auto-negotiation, full and half duplex • Ethernet Isolation - 1500VRMS 1 minute |
Pluggable SFP Ports | • 100FX SFP and 100/1000BaseX SFP Transceiver |
Network Redundancy | • Fast Failover Ring Protection with single and multiple rings,ring coupling,dual homing and chain modes • IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP • Static trunk or Dynamic via LACP (Link Aggregation Control Protocol) |
Bridging, VLANS, Multicast | • Flow Control IEEE 802.3x (FullDuplex) and Back-Pressure (HalfDuplex) • VLAN Capacity - 1024 • Port-based VLANs; MAC-based VLANs; IPSubnet-based VLANs • Protocol-based VLANs • IEEE802.1Q tag-based VLANs • IEEE802.1ad Double Tagging (Q in Q) • IGMPv1, v2, v3 with up to 1000 multicast groups • IGMP snooping and querying • Immediate leave and leave proxy • Throttling and filtering • IEEE 802.1ab Link layer Discovery Protocol (LLDP) • ITU G.8032 Ethernet Ring Protection Switching (ERPS) |
Management | • CLI • GUI • SNMPv1, v2c, v3 • Telnet • Dual Stack IPv4/IPv6 for management • Management Security • HTTPs, SSH, RADIUS client for management • FTP • Configuration Import/Export, Firmware Upgrade • SYSLOG • Per VLAN mirroring • Ethernet Copper Diagnostics • Digital Diagnostics for SFP ports • DHCP • Client, Server, Relay, Snooping, Option82 • NTP • PoE scheduling, power control, PoE PD power consumption |
Memory | • 128MB DRAM • 16MB FLASH • 4MB Packet buffer |
Environmental and Compliance | • Operating Temperature Range : -40°C to +75°C (cold startup at -40°C) • Storage Temperature Range : -40 to +85°C • Humidity (Non-Condensing) : 5 to 95% RH |
ISW 4-10/100P, 2-10/100T, 2-SFP : 4-Port POE+ 10/100 2-Port 10/100 w/ 2-Port SFP Operating Temperature -40°C - +75°C
