Extreme SLX 9150-48Y : ● 48 1/10/25GbE SFP28 ports ● 8 40/100GbE QSFP28 ports ● 1x Serial console port RJ-45 ● 1x 10/100/1000BASE-T out -of-band management port ● USB Type A storage port

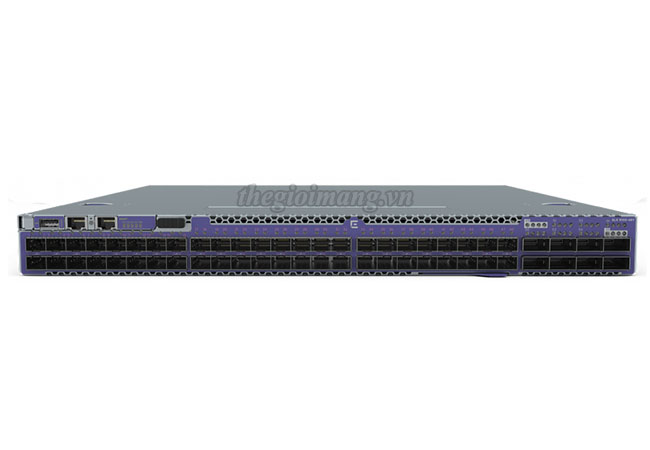

Thiết bị chuyển mạch Switch Extreme SLX 9150-48Y
| Model | SLX 9150-48Y |
| Ports | 48 1/10/25GbE SFP28 ports 8 40/100GbE QSFP28 ports 1x Serial console port RJ-45 1x 10/100/1000BASE-T out -of-band management port USB Type A storage port |
| Power Supplies | Modular 750W AC power supply (up to two PSUs) Modular 750W DC power supply (up to two PSUs) Front to Back and Back to Front airflow options |
| Fan Modules | 6 fan modules Front-Back and Back-Front airflow options |
| Dimensions | 17.3in W / 20.9in D / 1.7in H (44.0cm / 53.2cm / 4.3cm) |
| Performance | Line rate 4Tbps Switching Capacity (2Tbps ingress, 2Tbps egress) Average Latency: 800 ns Forwarding rate: 1000 Mpps |
| CPU Memory | 8-core Processor 16GB DDR4 ECC memory 128GB SSD memory |
| Packet Buffers | 32MB |
| Power and Heat Dissipation | |
| Minimum Heat Dissipation (BTU/ hr) (Idle, no ports linked) | 553 BTU/ hr |
| Minimum Power Consumption (Watts) (Idle, no ports linked) | 167W |
| Maximum Heat Dissipation (BTU/hr) (Fans high, all ports 100% traffic) | 1600 BTU/ hr |
| Maximum Power Consumption (Watts) (Fans high, all ports 100% traffic) | 469W |
| Operating Conditions | 0º - 45ºC operation 5% to 95% relative humidity, non-condensing 0 - 3000 meters’ altitude Shock (half sine): 98 m/ s2 (10 G), 11ms, 9 shocks Random vibration: 3 to 500 Hz at 1.5 G rms |
| Software Specifications | |
| Connector options | 10/1 GbE SFP+ 25 GbE SFP28 40 GbE QSFP+ 100 GbE QSFP28 Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45 Console management: RJ45 serial port and USB type-C port with serial communication device class support Storage: USB port, standard-A plug Sound Pressure |
| Maximum MAC addresses | 64,000 |
| Maximum VLANs | 4,096 |
| Maximum ACLs (IPv4/IPv6/L2) | 2,000 |
| Maximum members in a standard LAG | 64 |
| Maximum number of MCT switches | 2 |
| Maximum number of Bridge Domains | 2,048 |
| Maximum IPv4 unicast routes | 128,000 |
| Maximum IPv6 unicast routes | 10,000 |
| Maximum IPv4 host routes | 47,000 |
| Maximum IPv4 host routes | 33,000 |
| Maximum jumbo frame size | 9,216 bytes |
| QoS priority queues (per port) | 8 |
Data sheet ExtremeSwitching SLX 9150
ExtremeSwitching SLX 9150 Series
| SLX 9150-48Y-8C | Extreme SLX 9150-48Y Switch with two empty power supply slots, six empty fan slots and a 4-post rack mount kit, supports 48x25GE/10GE/1GE + 8x100GE/40GE |
| SLX 9150-48Y-8C-AC-F | Extreme SLX 9150-48Y Switch AC with Front to Back Airflow, Supports 48x25GE/10GE/1GE + 8x100GE/40GE with dual power supplies, six fans and a 4-post rack mount kit |
| SLX 9150-48Y-8C-AC-R | Extreme SLX 9150-48Y Switch AC with Back to Front Airflow, Supports 48x25GE/10GE/1GE + 8x100GE/40GE with dual power supplies, six fans and a 4-post rack mount kit |
| SLX 9150-48Y-DC-F | Extreme SLX 9150-48Y with Front to Back airflow. Supports 48x25/10/1G + 8x100/40G with dual DC power supplies, six fans and a 4-post rack mount kit |
| SLX 9150-48Y-DC-R | Extreme SLX 9150-48Y with Back to Front airflow. Supports 48x25/10/1G + 8x100G/40G with dual DC power supplies, six fans and a 4-post rack mount kit |
