Extreme WiNG AP7632e (AP-7632-680B40-WR)

Extreme WiNG AP 7632e : WiNG 802.11ac Indoor Wave 2, Access Point, 2x2:2, Dual Radio 802.11ac/abgn,external antenna
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng

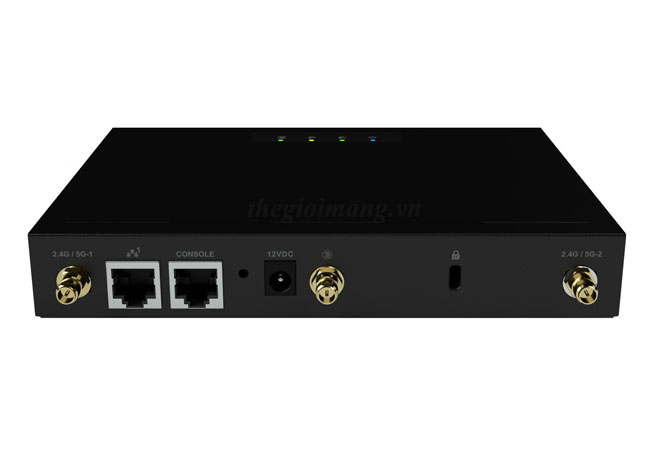

Thiết bị phát sóng Wifi Extreme WiNG AP7632e

Model AP7632e (AP-7632-680B40-WR)
Physical Characteristics
Dimensions AP 7632e: 6.9 in x 5.0in x 1.2 in, 175 mm x 128 mm x 26.9 mm
Weight AP 7632e: 1.4 lbs, .6 kg
Housing Plenum-rated housing (UL2043)
Available Mounting WiNG bracket compatible, Extreme Multi-Tbar, keyhole slots, Wall04
Configurations Above drop ceiling, under ceiling or on wall
LEDs Activity Indication 2 top-mounted LEDs; activity indication
LAN Ethernet 1x IEEE 802.3 Gigabit Ethernet auto-sensing
Antenna Connectors AP 7632-680B40: Three RP SMAs: 2 dual band ports, 1 BTLE
Console Port RJ45
USB Port USB2.0 for purpose-built modules. Available on AP-7632-680B40 model
User Environment
Operating Temperature AP-7632-680B40: -4° F to 131° F/ -20° C to 55° C ambient temperature anywhere
-4° F to 140° F/ -20° C to 60° C ambient temperature near sea level
Storage Temperature -40°F to 158°F/-40°C to 70°C
Operating Humidity 0% - 95% (noncondensing)
Electrostatic Discharge AP-7632-680B40: 12kV air, 6kV contact
Power Specifications
Operating Voltage PoE-PD: 48VDC; Wall brick: 12VDC
Operating Current PoE-PD: 230mA at 48V; Wall brick: 1.5a
PoE-PD Class 802.3af, 802.3at
Power Consumption AP 7632e Typical: 10 W, Idle (Radios ON): 4.8 W w/o USB consumption
Networking Specification
Layer 2 and Layer 3 Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE and LLDP
Security Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server
Quality of Service WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS
Radio Specifications
Wireless Medium Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)
Network Standards  IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD, L2TPv3, Client VPN, MESH (released in a future version of WiNG), Captive Portal server, Support SNMP v1, v2c, v3
Data Rates Supported 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps; 802.11a: 6,9,12,18,24,36,48, and 54 Mbps; 802.11n: MCS 0-15 up to 300 Mbps; 802.11ac on 2G VHT MCS0-9 up to 400Mbps, 802.11ac on 5G: VHT MCS 0-9 up to 867 Mbps
Operating Channels* 2.4 GHz band: channel 1 through channel 13
5 GHz band: channel 36 through channel 165
Antenna Configuration  2X2 MIMO (transmit/receive on both antennas). Transmit power adjustment 1dB increment
Operating Frequencies  2412 to 2472 MHz, 5180 to 5825 MHz
Performance and Capacity
Concurrent Users 256 per radio
SSID  8 per radio, 16 per AP

AP-7632-680B40-WR : WiNG 802.11ac Indoor Wave 2, Access Point, 2x2:2, Dual Radio 802.11ac/abgn,external antenna

Data sheet ExtremeWireless WiNG 7632 Indoor Access Point
