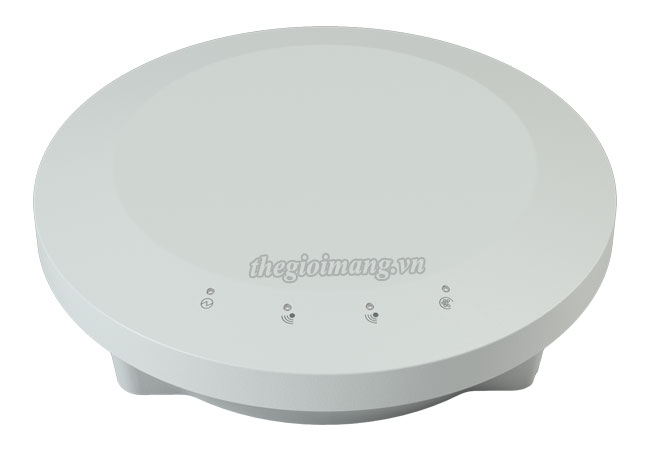

Thiết bị phát sóng Wifi Extreme WiNG AP7632i
| Model | AP7632i (AP-7632-680B30-WR) |
| Physical Characteristics | |
| Dimensions | AP 7632i: 6.3 in x 1.7 in, 161 mm diameter x 48.5 mm |
| Weight | AP 7632i: .7 lbs, .3 kg |
| Housing | Plenum-rated housing (UL2043) |
| Available Mounting | WiNG bracket compatible, Extreme Multi-Tbar, keyhole slots, Wall04 |
| Configurations | Above drop ceiling, under ceiling or on wall |
| LEDs Activity Indication | 2 top-mounted LEDs; activity indication |
| LAN Ethernet | 1x IEEE 802.3 Gigabit Ethernet auto-sensing |
| Antenna | AP 7632-680B30: 4dBi - 2.4 GHz band; 6 dBi - 5GHz band, IoT 4.1 dBi |
| Console Port | RJ45 |
| USB Port | USB2.0 for purpose-built modules. Available on AP-7632-680B40 model |
| User Environment | |
| Operating Temperature | AP-7632-680B30: 32° F to 104° F/ 0° C to 40° C |
| Storage Temperature | -40°F to 158°F/-40°C to 70°C |
| Operating Humidity | 0% - 95% (noncondensing) |
| Electrostatic Discharge | AP-7632-680B30: 15kV air, 8kV contact |
| Power Specifications | |
| Operating Voltage | PoE-PD: 48VDC; Wall brick: 12VDC |
| Operating Current | PoE-PD: 230mA at 48V; Wall brick: 1.5a |
| PoE-PD Class | 802.3af, 802.3at |
| Power Consumption | AP 7632i Typical: 11 W, Idle (Radios ON): 4.8 W |
| Networking Specification | |
| Layer 2 and Layer 3 | Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE and LLDP |
| Security | Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA TripleMethodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS, and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server |
| Quality of Service | WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS |
| Radio Specifications | |
| Wireless Medium | Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO) |
| Network Standards | IEEE 802.11a/b/g/n/ac, 802.11d and 802.11i WPA2, WMM, and WMM-UAPSD, L2TPv3, Client VPN, MESH (released in a future version of WiNG), Captive Portal server, Support SNMP v1, v2c, v3 |
| Data Rates Supported | 802.11b/g: 1,2,5.5,11,6,9,12,18,24,36,48 and 54 Mbps; 802.11a: 6,9,12,18,24,36,48, and 54 Mbps; 802.11n: MCS 0-15 up to 300 Mbps; 802.11ac on 2G VHT MCS0-9 up to 400Mbps, 802.11ac on 5G: VHT MCS 0-9 up to 867 Mbps |
| Operating Channels* | 2.4 GHz band: channel 1 through channel 13 5 GHz band: channel 36 through channel 165 |
| Antenna Configuration | 2X2 MIMO (transmit/receive on both antennas). Transmit power adjustment 1dB increment |
| Operating Frequencies | 2412 to 2472 MHz, 5180 to 5825 MHz |
| Performance and Capacity | |
| Concurrent Users | 256 per radio |
| SSID | 8 per radio, 16 per AP |
AP-7632-680B30-WR : WiNG 802.11ac Indoor Wave 2, Access Point, 2x2:2, Dual Radio 802.11ac/abgn, internal antenna
