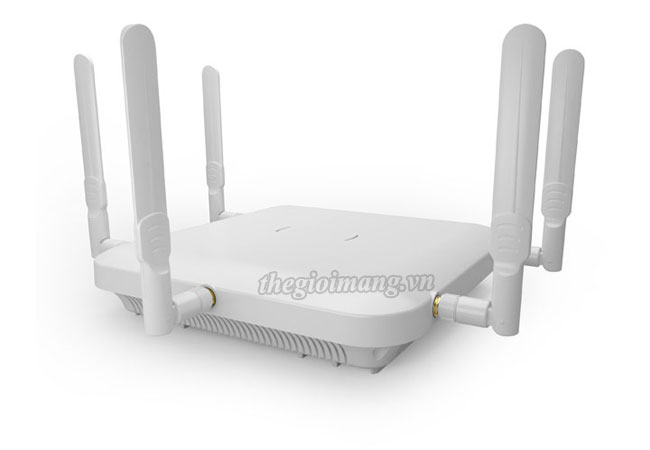

Extreme WiNG AP8533 (AP-8533-68SB40-1-WR)

Extreme WiNG AP 8533 (AP-8533-68SB40-1-WR) : 802.11ac Wave 2, Tri-Radio, dedicated sensor, BLE, external antenna, 2xGE.
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị phát sóng Wifi Extreme WiNG AP 8533

Model WiNG AP 8533
Physical Characteristics
Dimensions  8.25” x 8.25” x 1.8”
210mm x 210mm x 46mm
Weight  3.0lbs, 1.27kg
Mounting  Included mounting bracket for flush mount or T-bar mount
LEDs  System status: Green, Amber, Blue, White
LAN Ethernet  2x IEEE 802.3 Gigabit Ethernet auto-sensing
Antenna Connectors AP-8533-68SB40; five RP SMA connectors; one RP-SMA dedicated for BT/BLE radio
Console  RJ45
802.11ac Capabilities • Quad radios (3 Wi-Fi radios + one Bluetooth® radio)
• Band-unlocked Network Sensor for WIPS and Location Service
• 4x4 MU-MIMO with 4 Spatial Streams
• Auto-Selecting MU-MIMO supports 1 and 2 stream wireless clients
• 20, 40, and 80 MHz Channels
• Packet Aggregation (AMSDU, AMPDU) and RIFS
• MIMO Power Save (Static and Dynamic)
• Advanced forward error correction coding: STBC, LDPC
• 802.11ac transmit beamforming
• Maximal Ratio Combining (MRC)
• NitroQAM provides up to 800 Mbps on 2.4GHz radio and up to 2166 Mbps on 5GHz radio
• Support for up to 500 associated client devices per access point and up to 16 BSSIDs per radio
User Environment
Operating Temperature  32° F to 140° F/0° C to 50° C
Storage Temperature  40° F to 158° F/-40° C to 70° C
Operating Humidity  95% RH non-condensing
Electrostatic Discharge  Internal AP-8533-68SB30/3E: ESD to ±12KV air and ±8KV contact
Antenna Information
Internal Antenna Radio 1 (2.4GHz) : 5.2dBi
Radio 2 (5.2GHz): 6.8 dBi
Radio 3 (2.4GHz/5.2GHz): 4.9/5.9 dBi
Radio 4 (2.4GHz): Integrated antenna with 7.7dBi
External Antenna Radio 1, 2 : up to 10dBi
Radio 3 (2.4GHz/5.2GHz) integrated antenna: 4.9/5.9 dBi
Radio 4 (2.4GHz): dual-mode antenna option. Integrated antenna with
7.7dBi or optional external antenna up to 11dBi.
DC Power Specifications
Operating Power  Max Power Consumption: 24W
Typical Power Consumption: 12W
Radio Specifications
Wireless Medium  DSSS, OFDM, MIMO, MU-MIMO
Network Standards IEEE 802.11a/b/g/n/ac, 802.11d, and 802.11i WPA2, WMM, WMM-UAPSD, L2TPv3
802.11b/g: 1-54 Mbps
802.11a: 6-54 Mbps
802.11n: MCS 0-31 up to 600 Mbps
802.11ac: MCS 0-9 up to 1.733 Gbps; In Nitro mode, radio 1 and 2 data rates can go up to 1000Mbps and 2166Mbps, respectively.
Operating Channels 2.4 GHz band: channel 1-13 5.2 GHz band: channel 36-165 2412 to 2472 MHz, 5180 to 5850 MHz
Channel availability depends on local regulatory restrictions
Antenna Configuration Radio 1: 2.4GHz: 4x4 with 4SS
Radio 2: 5GHz: 4x4 with 4SS
Radio 3: Dual-Band Sensor: 1x3 with 3SS
Radio 4: Bluetooth radio with selectable single integrated antenna or external antenna
Conducted Radio Power  Up to 21dBm, depending on local regulatory restrictions, in 1dB increments
Operating Frequencies  2412 to 2472 MHz, 5180 to 5850 MHz
Networking
Layer 2 and Layer 3  Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client,
PPPoE, and LLDP
Security Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple Methodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS and secure guest access (hotspot) with captive portal, IPSec, and RADIUS Server
QoS  WMM, WMM-UAPSD, 802.1p, Diffserv, and TOS. Role-based QoS with rule-based packet marking.

AP-8533-68SB40-1-WR : 802.11ac Wave 2, Tri-Radio, dedicated sensor, BLE, external antenna, 2xGE

Data sheet ExtremeWireless WiNG 8533 Wave 2 Access Point
