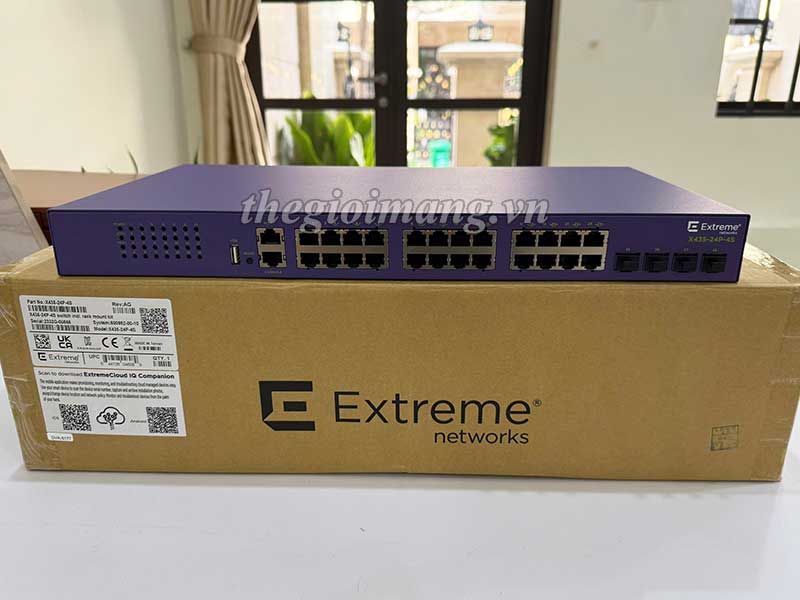

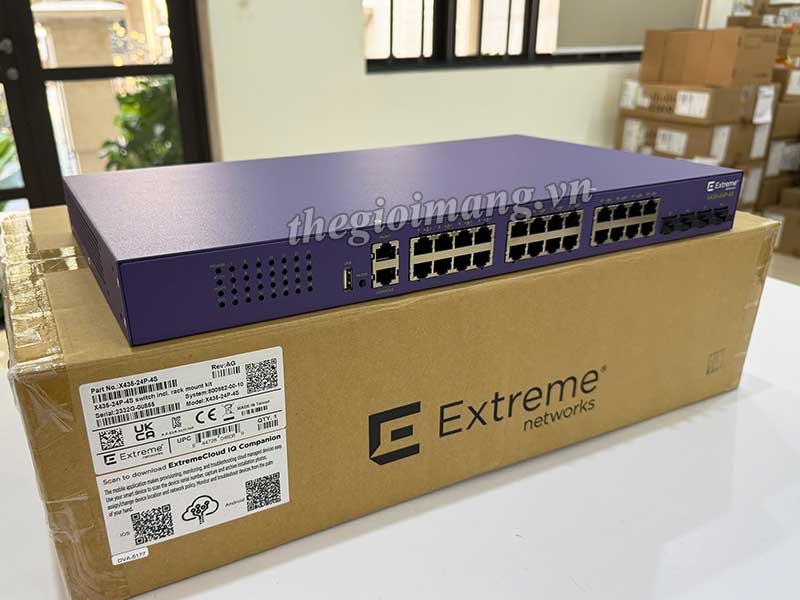

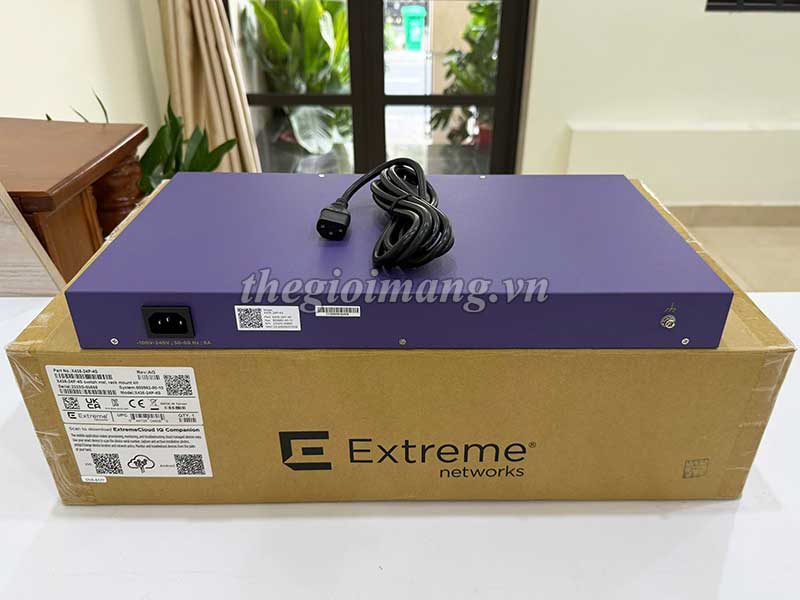

Thiết bị chuyển mạch Switch Extreme X435-24P-4S
| Model | X435-24P-4S |
| Max Active 10/100/1000BASE-T Ports | • 24 |
| Max Active 1Gb/2.5Gb SFP Ports | • 4 |
| Aggregated Switch Bandwidth | • 68 Gbps |
| Frame Forwarding Rate | • 50.6 Mpps |
| Specifications | • Layer 2/MAC Addresses: 16K • 4096 VLANs/VMANs (2 VLANs reserved for system use) • IPv4 LPM Entries: 32 • IPv4 Hosts: 3100 • IPv6 LPM Entries: 16 • IPv6 Hosts: 500 • IP Multicast groups: 64 • IP Multicast (s,v,g) entries: 1500 • 9216 Byte Max Packet Size (Jumbo Frame) • 8 queues per port • 1K ingress ACL rules • OnePolicy Scaling • Up to 192 authenticated policy users per switch • Policy Profiles: 63 • Unique Permit/Deny Rules per switch: 184 |
| CPU/Memory | • ARM A9 CPU • 512 MB DRAM • 128 MB Flash |
| Operating Conditions | • Temperature • 8-port X435 models: 0° C to 40° C (32° F to 104° F) • 24-port X435 models: 0° C to 45° C (32° F to 113° F) • Humidity: 10% to 95% relative humidity, non-condensing • Altitude: 0 to 3,000 meters (9,850 feet) • Shock (half sine) 30m/s2 (3G), 11ms, 60 shocks • Random vibration: 3 to 500 Hz at 1.5 G rms |
| Weights | • 3.48 kg |
| Dimensions | • 441mm x 43.5mm x 254mm |
X435-24P-4S : ExtremeSwitching X435 switch 24x10/100/1000BASE-T PoE+ full / half duplex ports, 4x1G/2.5G unpopulated SFP ports, 1 AC PSU, rack-mount kit (XN-2P-RMKIT-004), ExtremeXOS Value Edge license.
