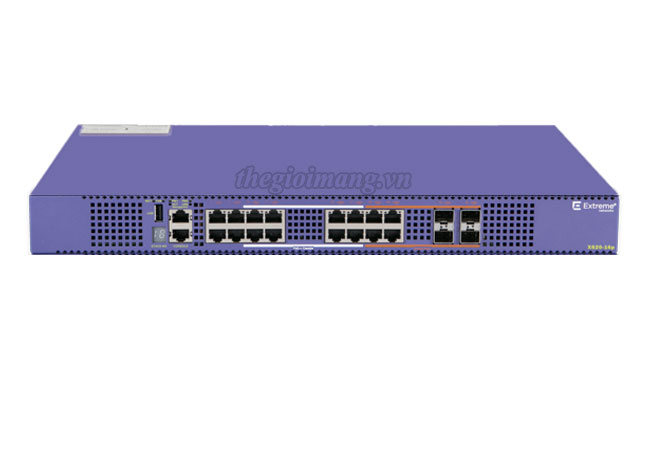

Thiết bị chuyển mạch Switch Extreme X620-16p
Model | X620-16p |
Ports | 2 x 100Mb / 1Gb / 2.5Gb / 5Gb / 10GBASE-T ports with EEE (RJ45) 4 100Mb/1Gb/10GBASE-T PoE+ and EEE (RJ45) shared with 4 1Gb/10GBASE-X SFP+ ports with 10GBASE-LRM support 16 Ports Power over Ethernet 8 ports 802.3bt Type 3 PSE 60W PoE++ (ports 5-12) 8 ports 802.3at PoE+ Type 2 PSE 30W (ports 1-4, 13-16) 1 x Serial console port RJ-45 1 x 10/100/1000BASE-T out-of-band management port USB 2.0 port |
Power Supplies | Modular 750W AC power supply (up to two PSUs) 380W PoE power per PSU (720W total PoE power per system) Front-Back airflow |
Dimensions | 17in W / 17.4in D / 1.7in H (43.1cm / 44.1cm / 4.4cm) |
Weight | 12.0 lbs / 5.5 Kg (base system) |
Performance | Line rate 320Gbps / 238Mpps Switching Capacity |
CPU Memory | 1GHz CPU 1GB DDR3 ECC memory 4GB eMMC Flash memory |
Packet Buffers | 2MB |
Operating Conditions | 0 º - 50ºC operation 10 % to 95% relative humidity, non-condensing 0 - 3000 meters altitude Shock (half sine): 98 m/ s2 (3 G), 11ms, 6 shocks Random vibration: 3 to 500Hz at 1.5 G rms |
X620-16p : 12 100Mb/1Gb/2.5Gb/5Gb/10GBASE-T PoE (8 PoE++ and 4 PoE+) and EEE, 4 100Mb/1Gb/10GBASE-T PoE+ and EEE shared with 4 1Gb/10GBASE-X SFP+ ports, 2 unpopulated power supply slots, 1 unpopulated Fan Module slot, ExtremeXOS Edge license
