Name: Fortinet FAP-241K
Brand: Fortinet
SKU: FAP-241K
Rating: 5 (12 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

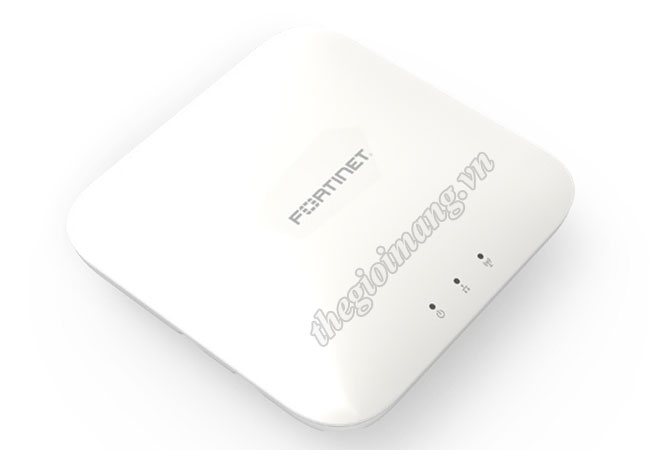

FortiAP 241K (FAP-241K) là bộ thu phát sóng Wi-Fi 7 lắp đặt trong nhà cấp độ doanh nghiệp , AP này cung cấp bốn băng tần và 2 luồng dữ liệu đồng thời. Điểm truy cập này hỗ trợ băng tần 6 GHz, có 1x cổng 10 Gigabit Ethernet và 1x cổng 1 Gigabit Ethernet. Các AP có thể cung cấp chức năng quét 24/7 qua tất cả các băng tần trong khi vẫn cung cấp khả năng truy cập trên các băng tần 2,4 GHz, 5 GHz và 6 GHz. Tích hợp sẵn kênh BLE/ZigBee có thể được sử dụng cho các ứng dụng cảnh báo và định vị..

Fortinet FAP-241K

4-Radio: 2.4GHz + 5GHz + 6GHz + Scan | 6 Ăngten gắn trong + 1 BLE/Zigbee ăng-ten bên trong
2x2 MU-MIMO | Lên tới 688 Mbps + 2.88 Gbps + 5.76 Gbps

Thông số Fortinet FortiAP 241K

Mã sản phẩm	FAP-241K
Hardware
Type	Indoor AP
Number of Radios	4-Radio 2.4GHz + 5.0GHz + 6GHz + Tri-band scan
Number of Antennas	6 Internal Wi-Fi antennas: 2x Dual band + 2x 6GHz band + 2x Tri-band Scanning 1 Internal 2.4GHz band BLE/ ZigBee antenna
Antenna Type and Peak Gain	PIFA 2.4/5GHz dual band antenna: 4.7 dBi for 2.4GHz, 5.4 dBi for 5 GHz Alford loop 6GHz antenna: 5.7 dBi for 6GHz band PIFA Tri-band antenna: 5.0 dBi for 2.4GHz, 5.7 dBi for 5.0GHz, and 5.35 dBi for 6GHz band PFA BLE antenna: 4.6 dBi for 2.4GHz
Maximum Data Rate	2.4GHz band: up to 688 Mbps 5.0GHz band: up to 4.324 Gbps 6.0GHz band: up to 5.765 Gbps
Bluetooth Low Energy (BT/BLE) Radio	Bluetooth scanning and iBeacon advertizement @10 dBm max TX power
Interfaces	1x 100M/1000M/2.5G/5.0G/10G Multigigabit Ethernet (RJ45) 1x 10M/100M/1000M/Ethernet (RJ45) 1x Type 2.0 USB at 2.5W 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE)	1x 802.3bt PoE default
Simultaneous SSIDs	Up to 24
User/Device Authentication	WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist and whitelist
Maximum Tx Power (Conducted)	2.4GHz band: 25 dBm/316 mW (2 chains combined)* 5.0GHz band: 26 dBm/400 mW (2 chains combined)* 6.0GHz band: 23 dBm/200 mW (2 chains combined@320MHz BW)*
SSID Types Supported	Local-Bridge, Mesh, and Tunnel
Per Radio Client Capacity	Up to 512 clients per radio (Radio1, Radio2, and Radio3)
Dimensions
Length x Width x Height	7.48 x 7.48 x 2.01 inches (190 x 190 x 51 mm)
Weight	2.4 lbs (1.09 kg)
Package (shipping) Weight	4.4 lbs (2.0 kg)
Mounting Options	Ceiling, T-Rail, and Wall
Included Accessories	Standard Mounting Kit for Ceiling, T-Rail, and Wall
Environment
Power Supply	802.3bt PoE: GPI-145 or 802.3at PoE: GPI-130 with USB disabled or 12V, 3A, 36 Watt DC power supply SP-FAP400-PA-XX
Power Consumption (Max)	26.1 W
Humidity	5–90% Non-Condensing
Operating / Storage Temp.	32°F to 122°F (0°C to 50°C) / -22°F to 158°F (-30°C to 70°C)
Directives	Low Voltage Directive * RoHS
UL2043 Plenum Material	Yes
Mean Time Between Failures	> 10 Years
Surge Protection Built In	Yes
Warranty
Limited Lifetime Warranty	Yes

Xem thêm

Thông số kỹ thuật

Data sheet FortiAP 241K

FortiAP-241K - FAP-241K - Indoor Wireless AP - (Wi-Fi-7 Tri-band 2.4/5/6GHz 2+2+2 2 streams 4 radios), internal antennas, 1x10/100/1000 RJ45, 1x 100/1000/2500/5000/10000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included

FC-10-P241K-247-02-DD - FortiCare Premium Support

FC-10-P241K-284-02-DD - FortiCare Elite Support.

FC-10-P241K-314-02-DD - FortiCare Essential Support for FortiAP. Available only for renewal and not with initial Hardware purchase.

Tính năng Fortinet FortiAP 241K (FAP-241K)

Hardware
Frequency Bands (GHz)	2.4GHz Band: ISM 2.4-2.484GHz 5.0GHz Band: UNII-1 5.15-5.25GHz UNII-2A 5.25-5.35GHz UNII-2C 5.47-5.73GHz UNII-3 5.725-5.85GHz UNII-4 5.85-6.895GH 6GHz Band: UNII-5 5.925-6.425GHz UNII-6 6.425-6.525GHz UNII-7 6.525-6.875GHz UNII-8 6.875-7.125GHz
Radio 1 Capabilities	Frequency band: 2.4GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Service
Radio 2 Capabilities	Frequency band: 5.0GHz UNII-1 to UNII-4 Channel width: 20/40/80/160/240MHz Modulation: BPSK, QPSK, 64/256/1024/4096 QAM MIMO Chains: 2x2 Service
Radio 3 Capabilities	Frequency band: 6.0GHz UNII-5 to UNII-8 Channel width: 20/40/80/160/320MHz Modulation: BPSK, QPSK, 64/256/1024/4096 QAM MIMO Chains: 2x2 Service
Radio 4 Capabilities	Frequency band: 2.4/5.0/6.0GHz Channel width: 20/40/80/160MHz Modulation: BPSK, QPSK, 64/256/1024 QAM MIMO Chains: 2x2 Scanning
EAP Type(s)	EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
Kensington Lock	Yes
IEEE Standards	802.11a, 802.11b, 802.11be, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1X, 802.3ad, 802.3at, 802.3bt, 802.3az
SSID Types Supported	Local-Bridge, Mesh, and Tunnel
Cellular Co-existence	Yes
LED Off Mode	Yes
Advanced 802.11 Features
OFDMA	Yes
Spatial Reuse (BSS Coloring)	Yes
UL-MU-MIMO	Yes
DL-MU-MIMO	Yes
Enhanced Target Wake Time (TWT)	Yes
ZeroWait DFS	No
Onboard Security Functions
UTP Capable	No
UTP Features	N/A
Wireless Monitoring Capabilities
Rogue Scan Radio Modes	Background, Dedicated
WIPS / WIDS Radio Modes	Background, Dedicated (recommended)
Packet Sniffer Mode	Yes
Spectrum Analyzer	Yes
Certifications
Wi-Fi Alliance Certified	Certified (Wi-Fi 7 in progress)
DFS	No

Xem thêm thông số kỹ thuật
