FG-1000F-BDL-811-12 thiết bị tường lửa Fortinet FortiGate 1000F Hardware Plus FortiCare Premium and FortiGuard Enterprise Protection - 1 Year Subscription
Thiết bị tường lửa Firewall Fortinet FortiGate-1000F (FG-1000F-BDL-811-12)
| Mã sản phẩm | FG-1000F-BDL-811-12 |
| Interfaces and Modules | |
| Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots | 2 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 8 |
| Hardware Accelerated 10 GE SFP+ / GE SFP Slots | 16 |
| Hardware Accelerated 10 GE / 5 GE / 2.5 GE / GE / 100M RJ45 Slots | 8 |
| 2.5 GE / GE HA Port | 1 |
| 10GE/ GE RJ45 Management Ports | 1 |
| USB Ports (Client / Server) | 2 / 2 |
| Console Port | 1 |
| Onboard Storage | 0 |
| Trusted Platform Module (TPM) | Yes |
| Included Transceivers | 2x SFP SX |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 19 Gbps |
| NGFW Throughput | 15 Gbps |
| Threat Protection Throughput | 13 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 198 / 196 / 134 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 198 / 196 / 134 Gbps |
| Firewall Latency (64 byte, UDP) | 3.45 μs |
| Firewall Throughput (Packets Per Second) | 201 Mpps |
| Concurrent Sessions (TCP) | 7.5 Million |
| New Sessions/Second (TCP) | 650 000 |
| Firewall Policies | 100 000 |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20 000 |
| Client-to-Gateway IPsec VPN Tunnels | 100 000 |
| SSL-VPN Throughput | 5.3 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10 000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 10 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 11 000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 600 000 |
| Application Control Throughput (HTTP 64K) | 44 Gbps |
| CAPWAP Throughput (HTTP 64K) | 65 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 250 |
| Maximum Number of FortiSwitches Supported | 196 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4096 / 1024 |
| Maximum Number of FortiTokens | 20 000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 3.5 x 17.44 x 17.63 |
| Height x Width x Length (mm) | 88.9 x 443 x 447.4 |
| Weight | 21.94 lbs (9.95 kg) |
| Form Factor (supports EIA/non-EIA standards) | Rack Mount, 2RU |
| AC Power Supply | 100–240V AC, 50/60Hz |
| AC Current (Maximum) | 6A@120VAC, 3A@240VAC |
| Power Consumption (Average / Maximum) | 210 W / 408 W |
| Heat Dissipation | 1211 BTU/h |
| Power Supply Efficiency Rating | 80Plus Compliant |
| Redundant Power Supplies (Hot Swappable) | Yes (comes with 2PSU default) |
| Operating Environment and Certifications | |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 66.7 dBA |
| Forced Airflow | Front to Back |
| Operating Altitude | Up to 10,000 ft (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6 |
Các phụ kiện và Module dùng với FortiGate 1000F
| Optional Accessories | SKU | Description |
| Rack Mount Sliding Rails | SP-FG3040B-RAIL | Rack mount sliding rails |
| AC Power Supply | SP-FG400F-PS | AC power supply for FG-400/401F, FG-600/601F, and FG-1000/1001F power cable SP-FGPCOR-XX sold separately. |
| 1 GE SFP LX Transceiver Module | FN-TRAN-LX | 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
| 1 GE SFP RJ45 Transceiver Module | FN-TRAN-GC | 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots |
| 1 GE SFP SX Transceiver Module | FN-TRAN-SX | 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
| 10 GE SFP+ RJ45 Transceiver Module | FN-TRAN-SFP+GC | 10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots |
| 10 GE SFP+ Transceiver Module, Short Range | FN-TRAN-SFP+SR | 10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots |
| 10 GE SFP+ Transceiver Module, Long Range | FN-TRAN-SFP+LR | 10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots |
| 10 GE SFP+ Transceiver Module, Extended Range | FN-TRAN-SFP+ER | 10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots |
| 10 GE SFP+ Active Direct Attach Cable, 10m / 32.8 ft | SP-CABLE-ADASFP+ | 10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots. |
| 25 GE SFP28 Transceiver Module, Short Range | FN-TRAN-SFP28-SR | 25 GE SFP28 transceiver module, short range for all systems with SFP28 slots. |
| 25 GE SFP28 Transceiver Module, Long Range | FN-TRAN-SFP28-LR | 25 GE SFP28 transceiver module, long range for all systems with SFP28 slots |
| 40 GE QSFP+ Transceiver Module, Short Range | FN-TRAN-QSFP+SR | 40 GE QSFP+ transceiver module, short range for all systems with QSFP+ slots |
| 40 GE QSFP+ Transceiver Module, Short Range BiDi | FG-TRAN-QSFP+SR-BIDI | 40 GE QSFP+ transceiver module, short range BiDi for all systems with QSFP+ slots |
| 40 GE QSFP+ Transceiver Module, Long Range | FN-TRAN-QSFP+LR | 40 GE QSFP+ transceiver module, long range for all systems with QSFP+ slots |
| 100 GE QSFP28 Transceivers, Short Range | FN-TRAN-QSFP28-SR | 100 GE QSFP28 transceivers, 4 channel parallel fiber, short range for all systems with QSFP28 slots |
| 100 GE QSFP28 Transceivers, Long Range | FN-TRAN-QSFP28-LR | 100 GE QSFP28 transceivers, 4 channel parallel fiber, long range for all systems with QSFP28 slots |
| 100 GE QSFP28 Transceivers, CWDM4 | FN-TRAN-QSFP28-CWDM4 | 100 GE QSFP28 transceivers, LC connectors, 2KM for all systems with QSFP28 slots |
Hardware Plus FortiCare Premium and FortiGuard Enterprise Protection - 1 Year Subscription (FG-1000F-BDL-811-12)

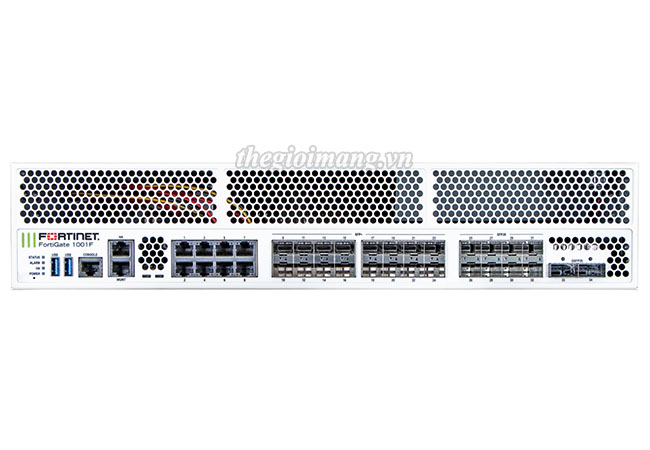

- Hardware: 2x 100GE QSFP28 slots , 8x 25GE SFP28 slots, 16x 10GE SFP+ slots, 8x 10GE BASE-T RJ45 ports, 1x 1GE MGMT port, 1x 2.5GE HA port, SPU NP7 and CP9 hardware accelerated, dual AC power supplies.
- 1 Year Hardware Unit plus FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service) plus term of contract
